Allied Electronics & Automation: Orion Fans High-Efficiency EC Fans Reduce Power Consumption by 50%
April 6, 2020

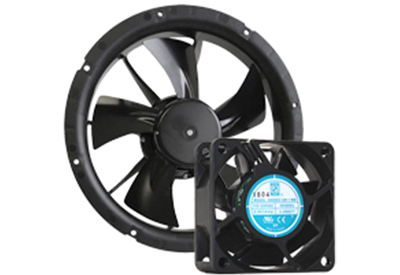

Designed to reduce power consumption by up to 50% in a variety of AC fan applications, electronically commutated (EC) fans from Orion Fans offer a significantly lower‑power, energy‑efficient cooling solution. The AC‑input fans utilize a brushless DC motor and incorporate voltage transformation within the motor for significantly lower power consumption. For custom requirements, dual‑speed EC fans can be programmed at the factory to deliver even more power savings.
Features
- – Electronically Commutated Motor
- – Available in 60, 80, 92, 120, 172, 250, and 254 mm
- – 85 VAC to 265 VAC
- – 2600 RPM to 4500 RPM
- – 31 dB to 57 dB
- – Spark‑Proof IP68‑Rated and ATEX‑Certified Models Available
- – Meet Energy Consumption Requirements from ENERGY STAR
- – -20° to +70°C Operating Temperature
- – Dual‑Speed Functionality in 250 mm Model
Benefits
- – Significantly Lower Power Consumption with as Much as 50% Reduction
- – Drop-in Replacement for AC Fans
- – Eliminates Sparking and EMI in Brushed Motors
- – Longer Service Life Due to Lower Operating Temperatures and Less Heat Loss
- – Improved Performance with More Accurate and Efficient Motor Control
Applications
- – Refrigeration
- – HVAC
- – Oil and Gas, Zone 2 Applications
- – Appliances
- – Commercial and Process Control
- – Electronic Enclosures and Cabinets
