B&K Precision: 8550 Series Programmable DC Electronic Loads

June 13, 2023

B&K Precision has recently announced the 8550 Series Programmable DC Electronic Loads.

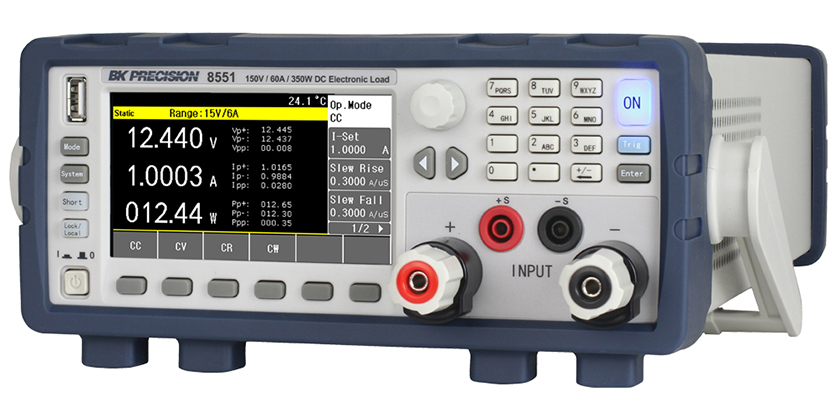

The series consists of two models capable of sinking up to 350 W in a compact benchtop form factor. The 8550 (150 V / 30 A) and 8551 (150 V / 60 A) both feature a 4.3-inch display and are well equipped for evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

User-configurable list, transient, and automatic test modes offer dynamically changing load conditions. The built-in battery discharge mode simplifies battery testing with configurable stop conditions for an added layer of protection. Additionally, this series features convenient power supply test functions for evaluating load regulation, overshoot/undershoot, and protection limits of a DC power supply.

Operating software and battery test software are provided for remote PC control and monitoring through the RS232 interface. The general-purpose handler interface simplifies integration with PLC devices. Measurement data and other parameters can be logged directly to a flash drive connected to the front panel USB host port.

The 8550 Series comes standard with a 3-year warranty and a starting list price of $890.
