Pilz: Safety Gate System PSENsgate / PSENmgate
October 15, 2024

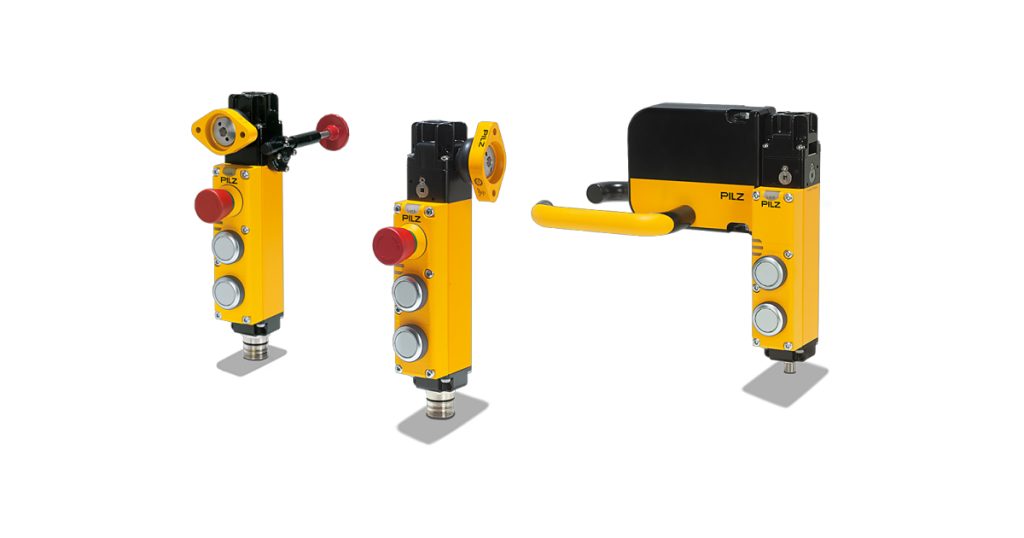

The safety gate system PSENsgate / PSENmgate offers two functions integrated within one system: Safe guard locking combined with the appropriate control elements.
Benefit from the high flexibility of the safety gate system. Various control elements are possible, such as pushbuttons, key switches, illuminated pushbuttons and section stop, as well as E-STOP and escape release. Suitable handles are also available. A versatile solution for your safety gates.
The new safety gate system PSENmgate – Small and versatile.
The integrated system for safety gate monitoring is already proven in use with PSENsgate. The new, optimised generation PSENmgate now offers even more benefits. Because PSENmgate combines the proven safety locking device PSENmlock with the control elements of the pushbutton unit PITgatebox in just one product! In comparison with its predecessor PSENsgate, PSENmgate is 43 % smaller, thus saving important space on your machine.
Note that the product PSENsgate will be discontinued in June 2026. Contact Pilz if you have any questions
Fast, simple installation – Your benefits
- Saves time: One integrated system for safety gate guarding simplifies installation and commissioning
- Saves space: Compact design of just 40x65x238 mm
- Greater flexibility: Wide range of configuration options (e.g. pushbuttons, key switches, illuminated pushbuttons, E-STOP, escape release, handle)
- Energy-efficient system for reduced power consumption
Features of the safety gate system PSENmgate
- Safety gate monitoring, safe guard locking and control elements in one system: One housing, one plug-in connector
- Ideal for all types of safety gate, including with series connection: Personnel protection up to PL e, Cat. 4 (EN ISO 13849-1)
- Highest level of manipulation protection guarantees a seamless production process
- User-friendly diagnostics with 4 LEDs and diagnostic output
- Robust, safe system: Holding force of up to 7500 N and monitoring of bolt breakage
- Protection class: IP 65
Safety gate guarding with PSENmgate
The safety gate system PSENmgate can be used anywhere that you need safe guard locking with control elements. PSENmgate is flexible to use on accessible safety gates, as well as covers and flaps. For example, the safety gate system PSENmgate enables safe guard locking of accessible safety gates on a robot cell. Several safety gates can also be connected quickly and simply in series – with minimal wiring.
