nVent: Rack Safety Plus 19” Power Distribution Unit With Emergency Stop Switch

October 18, 2023

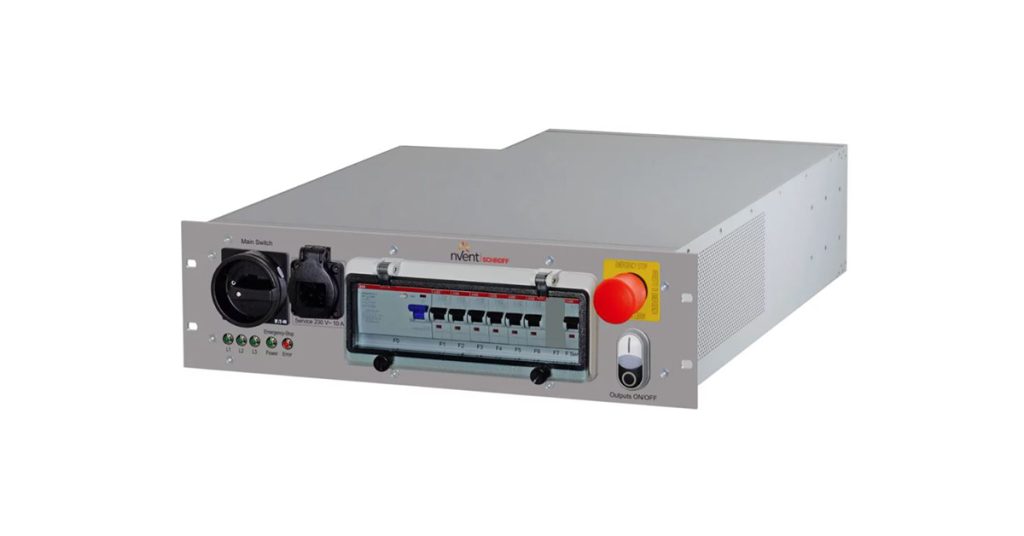

The 19”, 3U power distribution unit Rack Safety Plus supplies AC mains power and DC power to electrical or electronic devices as a central power switch with emergency stop function.

  • 400 V 3-phase, 230 V 1-phase mains input with mains fuses, 1-phase 120 V AC (phase to neutral) or 1-phase 208 / 240 V AC (phase to phase or phase to neutral)
  • AC outputs with different connector types from Schuko, C13, C19, NEMA 5-15R etc. connectors, switched by ON/OFF switch
  • Permanent AC Outputs (Service)
  • All outputs are protected by circuit breakers
  • The emergency stop function meets the requirements of EN 60947-5-1 and EN 60204-1 and is vandalism-proof
  • Choose a standard configuration, or quickly and easily create own configuration from predefined components.

Live Product Demo PDU with Emergency Stop

Which mains voltage and connector to choose? Do you need an EMC filter for your PDU? And what is the main difference between a regular commercial PDU, and the PDU Rack Safety Plus?

In a short 30 minutes live demo, Christian Ganninger, global product manager of nVent SCHROFF introduces the product concept of Rack Safety Plus and share tips and tricks on how to choose the best PDU for your application.

Get Access

nVent’s Rack Safety Plus is ideal for 19” Test Benches in areas such as:

  • Test & inspection equipment
  • Systems & control monitoring
  • Prototype test & development
  • Real-Time Simulation
  • High-current and high-voltage power units
  • EV Powertrain Test
  • Hardware-in-the-loop test
  • Powertrain Testing System
  • Load Simulator for Electric Vehicle
  • Battery equipment test cabinet
  • Power Test Equipment

More Information
