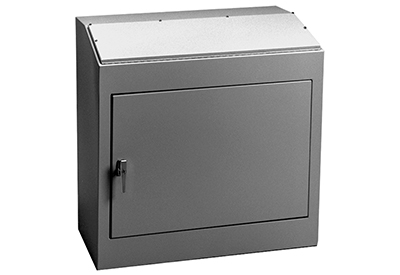

Hammond Manufacturing: Type 12 Modular Console Cabinet

April 20, 2020

Application

  •  –   Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  •  –   Heavy-duty construction provides protection from dirt, dust, oil and water. Sloping front control and instrument panels provide an ideal surface for mounting operator controls or instrumentation.

  •  –   Interior mounting is provided for with a removable inner panel located on the rear of the basic console.

Standards

  •  –   UL 508A Type 12
  •  –   CSA Type 12
  •  –   Complies with
    •     –   NEMA Type 12
    •     –   IEC 60529, IP65

Base Console Construction

  •  –   Formed 14 gauge steel.
  •  –   Smooth, continuously welded seams, without knockouts, cutouts or holes.
  •  –   Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
  •  –   Front instrument panel may be removed by pulling the hinge pin.
  •  –   Flush doors are secured with a three point latch and operated with a key locking automotive type handle.
  •  –   Two door model has overlapping front doors, with three point latch on right door.
  •  –   Oil resistant gaskets are permanently secured.
  •  –   Includes a removable inner panel formed from 12 gauge steel, mounted to the back of the enclosure interior.
  •  –   Collar studs are provided for mounting inner panels.
  •  –   A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
  •  –   A literature pocket is provided.

Turret Construction

  •  –   Formed and welded from 14 gauge steel.
  •  –   Sloping instrument panel and vertical rear access are completely removable.
  •  –   Captive panel screws fasten into sealed wells.

Writing Surface Construction

  •  –   Formed and welded from 14 gauge steel.
  •  –   Fastens to the front of the console with screws

Finish

  •  –   Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating on the outside and on the inside.
  •  –   Removable inner panels are finished in white powder coating.
