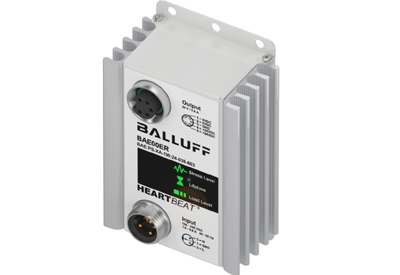

Balluff Heartbeat Power Supply Units

October 10, 2019

Balluff’s  short-circuit-proof, single-phase, extra narrow power supplies are approved according to CE/TÜV. The power supplies support predictive servicing for the purpose of Industry 4.0: the IO-Link interface allows the integration of all parameters into the overarching system diagnostics. The prodcut has top-hat rail assembly, regulatable output voltage of 24 V, output power 60 to 480 W, IP20, HEARTBEAT – status display.

Key Features-Benefits Bar.jpg



Dimension 85.4 x 57 x 139 mm

Version

 IP67

Mounting

 Flange mounting

Housing material

 Aluminum

Connection (supply voltage IN)

 7/8″-Male

Connection (supply voltage OUT)

 7/8″-Female

Input voltage

 100…240 VAC, Single phase

Rated output voltage DC

 24 V

Rated output current

 3.8 A

Output capacity max.

 91.2 W

Output current max.

 6 A for max. 4s

IP rating

 IP67 with connector

Approval/Conformity

 CE, cURus, WEEE

Ambient temperature

 -25…70 °C

Important Links Bar.jpg

https://www.balluff.com/local/us/productfinder/#/ca/A0015/product/G1503/variant/PV152183
