nVent: Extreme Environments Enclosure

January 8, 2025

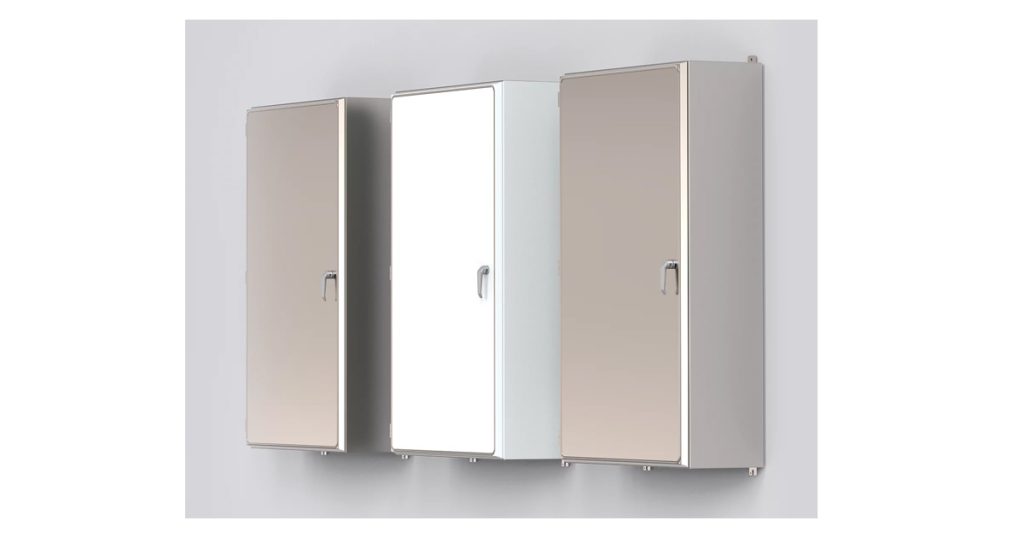

nVent’s Extreme Environments Enclosure includes a padlocking handle, and a lift off, lockable door. The enclosure is available standard in 304SS and White Painted 304SS with zinc plated internal components and EPDM replacement gasket. 316LSS models have stainless steel internal components and silicone replacement gasket. The gasket is removable, replaceable, and available for sale as a UL Listed field install kit. Gaskets are interchangeable among the Extreme Environments Enclosures of the same size.

This product utilizes the same back panel as A4SW3 for easy enclosure performance improvements for your next project with minimal to no design changes to layout.

Extreme Environments Enclosure Features

  • Seams continuously welded and ground smooth
  • EPDM gasket – Temperature range: -50 to 120C (-58 to 248F)
  • Silicone gasket – Temperature range: -60 to 250C (-76 to 482F)
  • Single-point latching on models less than 24-inches tall
  • Three-point latching on models 24-inches or taller
  • Door easily removed by loosening set screws
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Exterior Hardware made of corrosion resistant 316 stainless steel
  • Bonding provision on door; grounding stud on body
