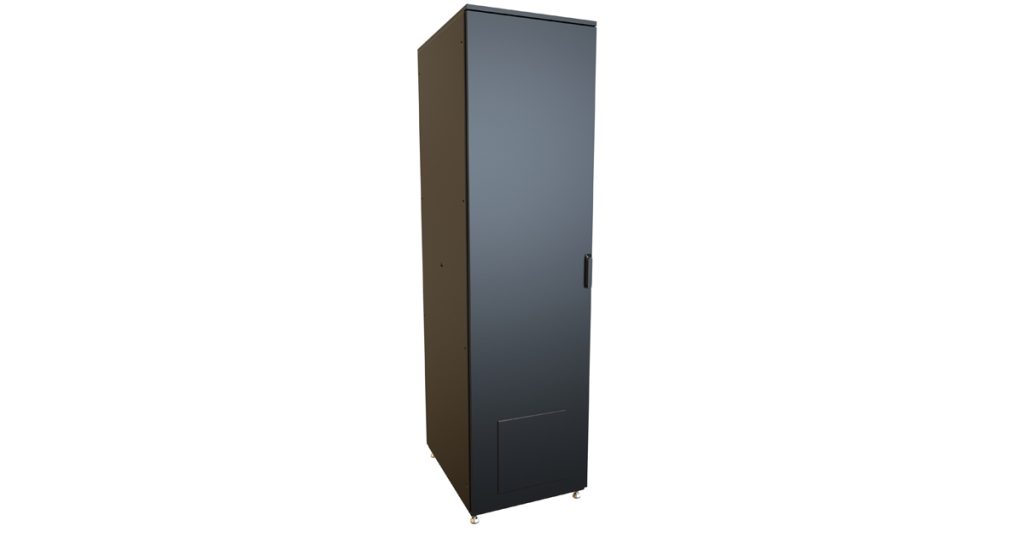

Hammond Manufacturing: HDME Series NEMA Type 12 Server Cabinet
![](https://www.panelbuilderus.com/wp-content/uploads/2024/07/PB-82-Hammond-HDMESeriesServerCabinet-1200-1024x538.jpg)
July 22, 2024
The HDME is ideal for housing network access equipment in harsh environments such as a factory floor. The HDME features a sealed cabinet with included gland plates for the installation of filter fans. The UL and CSA tested NEMA ratings provide outstanding protection against dust and air contaminants.
HDME Features
- Front and rear solid doors include an installed gland plate for cooling options. Doors open to 135°. Window door option available.
- Reinforced top panel with provisions for optional HDMELB lifting eye bolts.
- Frames can be joined together with an optional joining kit.
- A black, cellular neoprene gasket provides tight and secure seal protection from moisture, dust and air contaminants.
- Available in 42U and 47U mounting heights.
- Available 24″ wide. 31.5″ is available as a special order.
- Available in 31.5″ and 39.37″ overall depths.
- Includes adjustable depth mount rails.
HDME Specifications
- The cabinet frame, doors and side panels are constructed in 14-gauge mild steel.
- Square hole 19″ mounting rails are constructed of 12-gauge mild steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
- Newly weight-load tested to 3,200 lbs (1,451 kg) static load rating.
- NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
- Lift-tested to 900 lbs (408 kg) of equipment load when used with the HDMELB lifting eye bolts.
- Grounding studs are provided on the frame, side panels, and doors. The front and rear studs on the cabinet frame conform to PET.
- Finished in textured RAL9005 black powder coat. Also, available in textured light gray upon request.
- Complies with the Greenguard guidelines for indoor air quality.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Included Components
- Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
- Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
- Two (2) solid removable side panels.
- Two (2) solid doors with
- One (1) installed gland plate
- One (1) die-cast locking swing handle
- Two (2) door keys
- One (1) solid top panel.
- Two (2) bottom panels with gland plates
- Four (4) levelling feet
- Starter pack of CAGKIT1032-50 screws
