Hammond Manufacturing: NWC Series Swing-Out Industrial Wall Mount Rack Cabinet
October 9, 2024

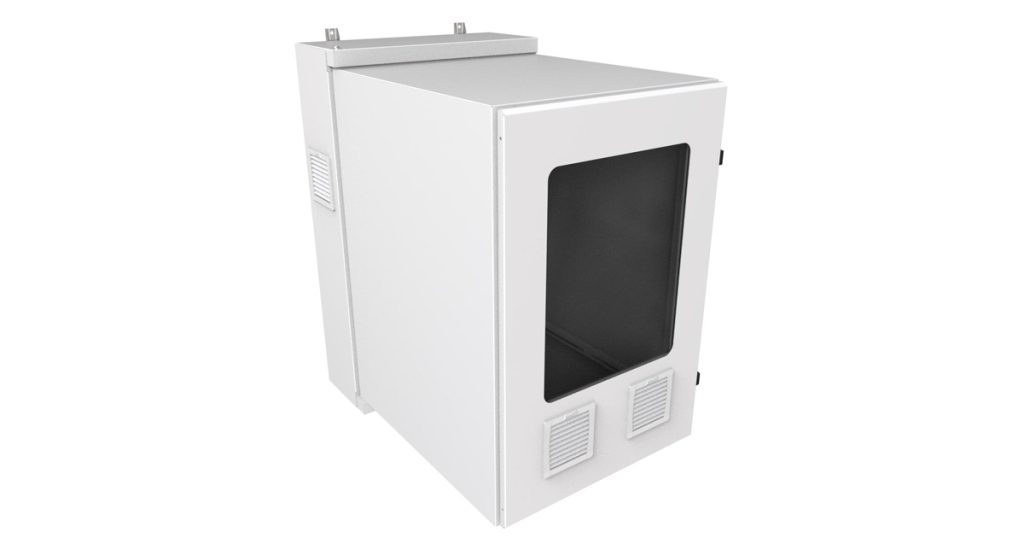

Introducing the NWC Series swing-out industrial wall-mounted rack cabinet from Hammond Manufacturing.
The NWC Series rack cabinet allows dual access to equipment via the double hinge design for indoor industrial applications. The main body and door swing from right-to-left, although the entire cabinet can be flipped 180 degrees to mount and swing left-to-right.
This rack cabinet series comes in three options:
- “N” Version comes without climate control or cutouts.
- “F” Version includes rear and door filters that maintain UL Type 12 ratings. Compatible with fan kit DNFK1AC120 for rear always-on hot air exhaust and DTFK1AC120E for thermostat-controlled air exhaust.
- “A” Version comes bundled with a 900-1300 BTU DTS3021A115LG air conditioner (shipped inside the cabinet) along with a cord.
All three options are available with a solid or window door.
More NWC Series Features
- The door is removable and swings more than 120 degrees.
- The middle section swings to 130 degrees to access the rear pan, allowing for easy maintenance.
- Both door and middle section include draw-latching locks, keyed alike.
- Optional padlock kit available.
- The heavy-duty rear pan is constructed in 14-gauge welded steel and features a hinge pin for easy installation.
- A heavy-duty wall mounting back pan can be used for cable entry.
- The rear of the enclosure include factory-installed external mounting feet positioned sixteen (16) inch centers.
- Two (2) pairs of adjustable depth threaded 10-32 EIA-compliant rack rails.
- Includes starter pack of SCREW1032-50
- Bonding studs are provided on the door, body and back pan.
- Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit is sold separately.
NWC Series Specifications
- Constructed in 14-gauge steel.
- Window door constructed with UV-resistant polycarbonate material.
- UL Listed 2416 Type 12 rated with a load rating of 350 lbs (158 kg).
- Complies with NEMA Type 12.
- Independently tested to IEC 60529 and IP56.
- Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
- Rack rails are drilled and tapped 10-32 to EIA 19″ standards and are finished in a smooth powder coat.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- Finished in a textured RAL7035 light gray or RAL9005 black powder coat.
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
