Hammond Manufacturing: HYW Series Hygienic Type 4X Stainless Steel Wallmount Enclosure

April 17, 2024

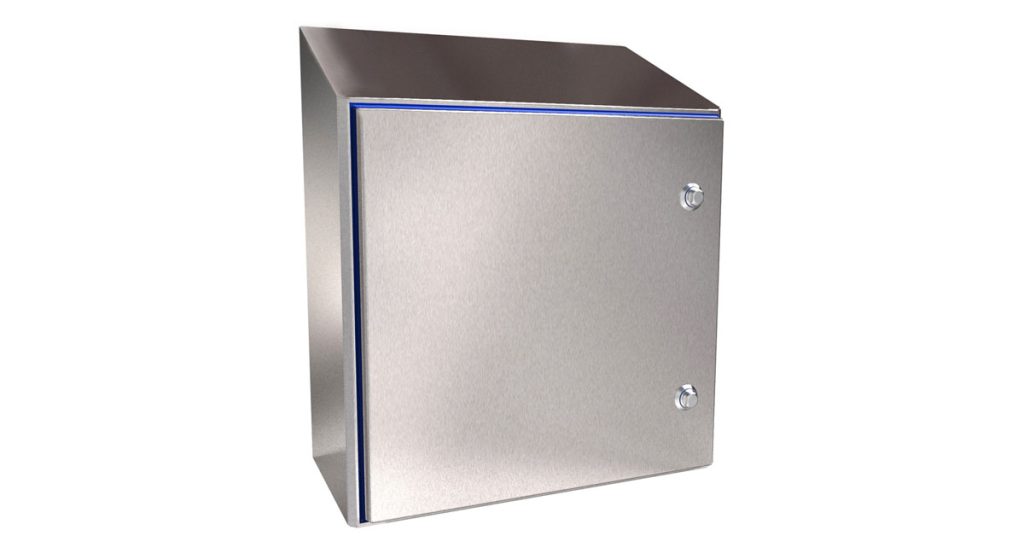

Introducing the HYW Series hygienic Type 4X stainless steel wallmount enclosure from Hammond Manufacturing, designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for wallmount applications. A sloped top prevents water from resting on top as well as providing potential for controls mounting, while an internal hinge design and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments. A wide range of sizes and practical accessories make this product line a complete package.

HYW Series Standards

  • UL 508A Type 3R, 4, 4X and 12
  • cUL Type 3R, 4, 4X and 12
  • NSF – ANSI 169
    • Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
  • Complies with
    • NEMA 3R, 4, 4X, 12 and 13
    • IEC 60529, IP 66, IP69, IP69K

HYW Series Construction

  • Formed, smooth 304 stainless steel.
  • Top sloped 25°
  • Continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity.
  • Hygienic door latches (316 stainless steel quarter turns) require use of tool for opening.
  • Interior hinges provide 105 degree opening, are easily removed for reverse door swing or on-site modifications.
  • Silicone gasket (hygienic blue) mounts around entire door edge allowing for efficient cleaning in hygienic environments.
  • Gasket can be easily removed and re-installed for cleaning or replacement.
  • Internal alignment guide provided to limit door sag.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts.
  • No pre-drilled wall mounting holes allow for flexible mounting alternatives – weld-in-place, stand-offs
  • Bonding stud provided on door and grounding stud installed in enclosure.

HYW Series Finish

  • Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.

More Information
