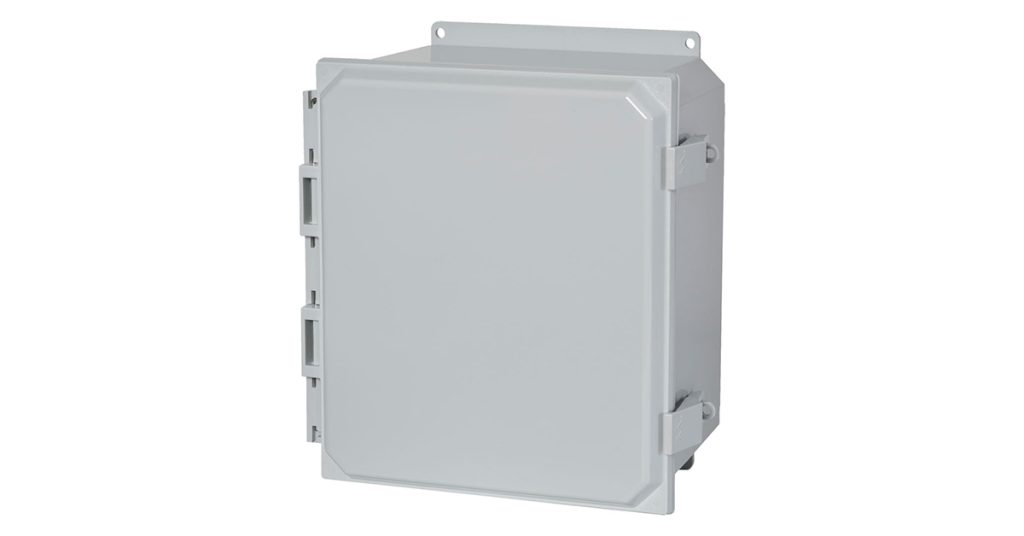

Hammond Manufacturing: PCJ Series Type 4X Polycarbonate Junction Box (Solid and Clear Cover)

September 26, 2023

Introducing the PCJ series Type 4X polycarbonate junction box with both solid and clear non-metallic latch covers, designed to insulate and protect controls and components in both indoor and outdoor conditions. These enclosures are ideal for industrial pump controls, waste water, and irrigation control along with solar/wind power and chemical plants.

The PCJ series enclosures conform to several standards, including:

  • UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • Complies with
    • NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
    • Flammability V-0 per UL 94
    • UV rating (f1) per UL746C – UV stabilized for outdoor use
    • Compliant with RoHS directive

PCJ Series Construction

  • Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
  • Enhanced UV inhibitors protect against outdoor weathering
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
  • Stainless steel 316 screw fasteners
  • Door fasteners include a provision for padlocking on Snap Latches
  • Enclosure available with clear polycarbonate cover
  • Molded hinge
  • Captive oil resistant gasket provides a positive seal
  • Available with polycarbonate flange or foot mount brackets for multi-directional mounting
  • Operating temperatures between 130°C and – 35 °C (266°F to – 31 °F)
  • Impact index of 16 J (12 ft/lb)
  • For corrosion resistance information, please refer to table in the Technical Information section

Finish

  • Polycarbonate  material has a light gray finish
  • Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass

More Information
