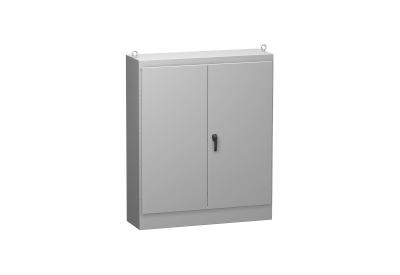

Hammond Manufacturing Type 12 Mild Steel Two Door Freestanding Enclosure

August 28, 2019

Hammond Manufacturing’s Type 12 Mild Steel Two Door Freestanding Enclosure is designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.

It provides a degree of protection from falling dirst, dust, oil and water and is available with front access only or both front and rear access. It also has a variety of inner panels, rack mounting angles and swing frames are are also available.

Construction

  • Formed 12 gauge steel (10 gauge on back of single access enclosures).
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Stiffeners on the rear of the enclosure provide rigidity. (Single access)
  • Lifting eyes provide for easy enclosure handling.
  • Doors are supported with heavy gauge continuous hinges.
  • Doors are secured with a three point latch and operated with a key locking automotive type handle.
  • Latch rods are equipped with rollers for easier door closing.
  • Oil resistant gaskets are permanently secured.
  • Provision for light kit mounting.
  • Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
  • A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units).

Finish

  • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
  • Optional inner panels, rails, frames and supports are available in white powder coating.

Single Access

Units shown: inch. Switch units to: mm

  Enclosure
Part No. H W D Optional
Full Panel¹
1418AW18 60.06 48.06 18.06 60AWFW
1418ZW18 72.06 48.06 18.06 72ZWFW
1418ZX18 72.06 60.06 18.06 72ZXFW
1418ZY18 72.06 72.06 18.06 72ZYFW
1418BW20 90.06 48.06 20.06 90BWFW
1418BY20 90.06 72.06 20.06 90BYFW
1418BY24 90.06 72.06 24.06 90BYFW
1418ZW24 72.06 48.06 24.06 72ZWFW
1418ZX24 72.06 60.06 24.06 72ZXFW
1418ZY24 72.06 72.06 24.06 72ZYFW
1418ZX36 72.06 60.06 36.06 72ZXFW
1418BY36 90.06 72.06 36.06 90BYFW
¹ Refers to optional full height/full width panels. Depth panels/half height width panels are also available

Dual Access

Units shown: inch. Switch units to: mm

  Enclosure
Part No. H W D Optional
Full Panel¹
1418ZWD24 72.06 48.06 24.06 72ZWFW
1418ZXD24 72.06 60.06 24.06 72ZXFW
1418ZYD24 72.06 72.06 24.06 72ZYFW
1418BYD24 90.06 72.06 24.06 90BYFW
1418ZXD36 72.06 60.06 36.06 72ZXFW
¹ Refers to optional full height/full width panels. Depth panels/half height width panels are also available
