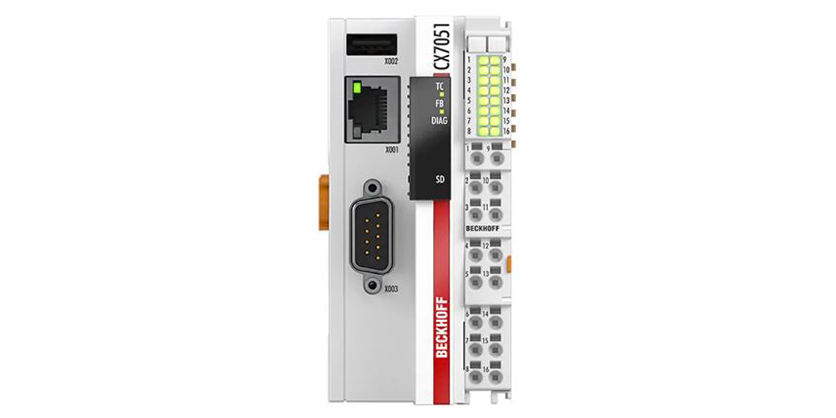

Beckhoff: CX7051 – Embedded PC for CANopen Responder (Slave)

May 10, 2023

The CX7051 Embedded PC has an ARM Cortex-M7 single-core processor with 480 MHz. In the basic configuration, it has a slot for a microSD card and an Ethernet interface. As a special feature, the CX7000 series has eight integrated multi-functional inputs as well as four integrated multi-functional outputs. This embedded PC has a CANopen responder (slave) interface.

E-bus or K-bus terminals can be attached as required; the CX7051 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the Ethernet interface.
