IDEC: FC6A MicroSmart PLC

February 13, 2024

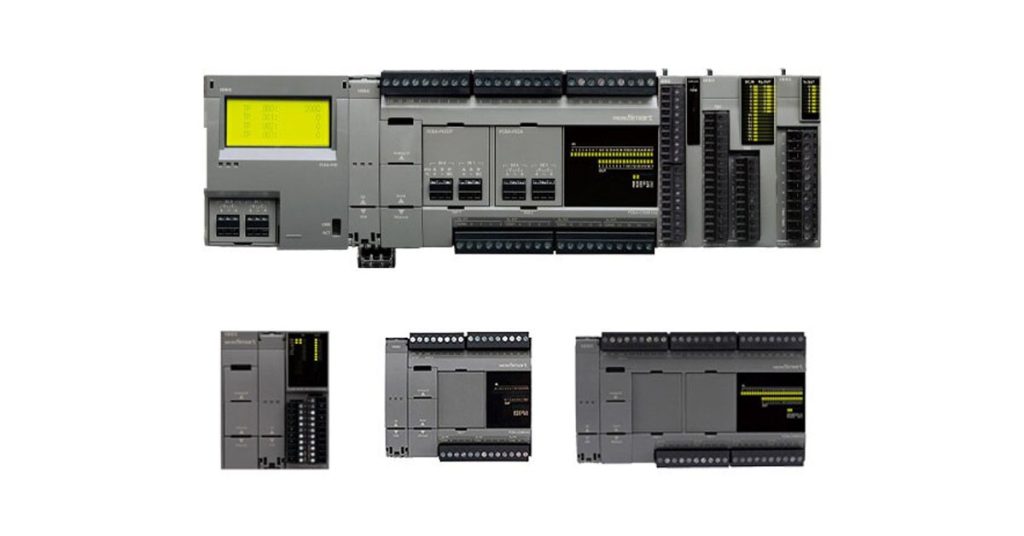

The MicroSmart FC6A series is available in two types of CPUs: Plus and All-in-One.

The Plus type has a dual RJ45 Ethernet port, embedded web server functions and the capability to expand up to 2060 I/O, while the All-in-One type has an embedded serial port and RJ45 Ethernet port capable of expanding up to 520 I/O.

The next generation IDEC MicroSmart FC6A Plus PLC stretches performance beyond micro PLC limits. With its 2,060 I/O capacity, this PLC can control large machines or entire small-scale manufacturing facilities, providing more capabilities for even the most demanding applications.  MicroSmart FC6A Plus CPUs now support EtherNet/IP protocol.  With the addition of industry-standard EtherNet/IP scanner capabilities, the FC6A Plus can now connect with, monitor, and control any I/O, variable speed drive, or other intelligent automation device using this popular industrial protocol. In addition, the FC6A Plus can be configured as an EtherNet/IP adapter, allowing it to interact with other peer and supervisory systems, such as PLCs and HMIs.

The FC6A All-in-One CPU is a powerful micro PLC with up to 520 digital I/O and 126 analog I/O. Three models are available, each with 24V DC or 100-240V AC input power. The 16 I/O model has 9 inputs, and 7 relay or transistor outputs. The 24 I/O model has 14 inputs, and 10 relay or transistor outputs. The 40 I/O model has 24 inputs, and 16 relay or transistor outputs. Each model also includes an integral 0-10V DC analog input. The 16 and 24 I/O models can accommodate one plug-in cartridge, while the 40 I/O model can accommodate two plug-in analog cartridges.

Key Features:

  • EtherNet/IP (Plus type CPU)
  • MQTT (Plus type CPU)
  • Modbus TCP and RTU
  • WindEDIT App for iOS and Android
  • Bluetooth communication
  • Embedded SD port
  • Data Logging
  • Web Server Functions
  • FTP Communications
  • RJ45 Ethernet ports
  • BACnet/IP (Plus type CPU)
  • SAE J1939 CPU (All-in-One type CPU)
  • -25 to 65 degree C Operating Temperature
  • Class I Div 2
  • 3 Year Warranty
