Beckhoff: EPP3504-0023 | EtherCAT P Box, 4-Channel Analog Input, Measuring Bridge, Full/Half/Quarter Bridge, 24 bit, 10 ksps, IP20 Connector

April 11, 2023

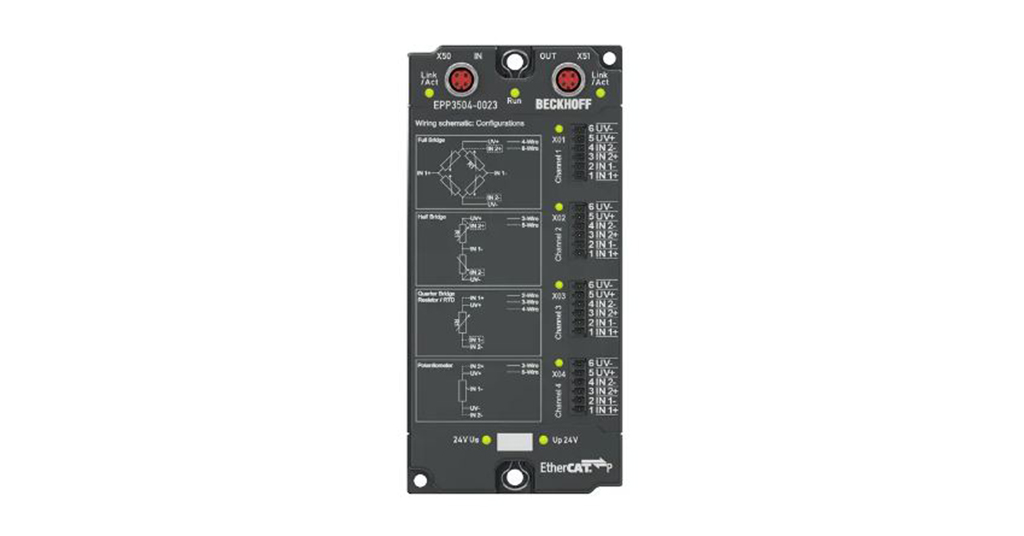

The EPP3504-0023 EtherCAT P Box

The EPP3504-0023 EtherCAT P Box is designed for the evaluation of measuring bridges in full-bridge, half-bridge and quarter-bridge configuration. It also supports the potentiometer, Pt1000 (RTD) and ±10 V measuring ranges. It is derived from the ELM3504 EtherCAT Terminal and features a sampling rate of 10,000 sps, internal switchable supplementary resistors, and an integrated, parametrizable bridge supply.

It also features the same technological properties as the ELM3x0x terminals – i.e., all parameters can be set via EtherCAT using the CoE directory. This EtherCAT P Box is designed for use in close proximity to the measurement site in a protected environment and is therefore equipped with IP20 bridge connections.


More Information
