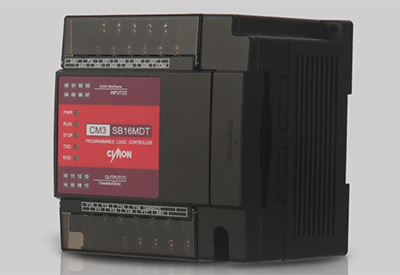

Cimon: PLC-SB

January 28, 2020

CIMON-PLC is an industrial control device based on international standards of IEC61131. It is designed for a plant site that requires industry-leading reliability. CIMON-PLC is optimized for Industry 4.0 and enhances the intelligence of industrial sites.

Built-in Function

  • –   PID Control
    •    –   Operates 32 LOOP PID without PID module.
  • –   I/O reservation
    •    –   Scans module at designated slot.
      Refers to reservation function which writes a program without I/O change in case of expansion, damage or replacement.
  • –  Online Edit
    •    –   Program can be edited while Run mode.

Key Features-Benefits Bar.jpg

  • –   16Kpps High-Speed Counter (2 Channel) Built-in
    • –   2PH. 2/4Multi. Input mode possible, Voltage input type (Open collector)
  • –   100kpps 2axis Pulse Output built-in. (Positioning)
    • –   Pulse + Direction Output, Position/Speed/Speed-Position, Position-Speed Control.
  • –   Max. 3communications can work simultaneously. (USB, RS232, RS485)
    • –   CIMON HMI, MODBUS RTU/TCP, PLC Link, Protocol program(User protocol), Loader protocol, Remote access & up/download supported.
      (Only SB16MDTV support RS485.)
  • –   Memory (10K Step)
  • –   Data reserved in case of power loss
    • –   Built-in Flash memory enabling permanent backup of the program without any separate battery

 Important Links Bar.jpg

https://www.cimon.com/product/cpu-plc-sb/?k&cat=103&pTab=sub#sb_pg
