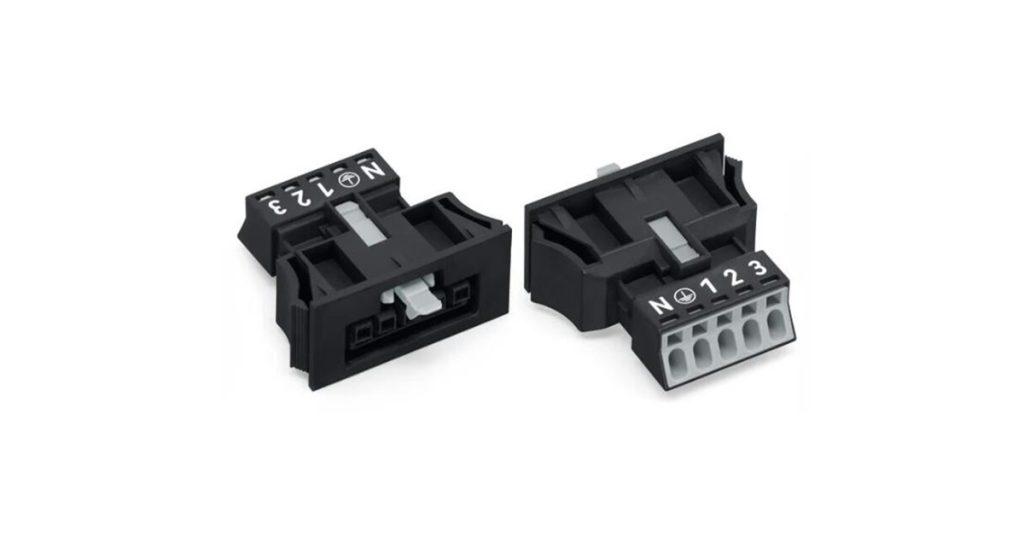

WAGO: WINSTA MINI Female Connector/Socket A Coding

October 18, 2023

For signal and power transmission: The WINSTA MINI female connector/socket with protection type IP40.

WAGO pluggable installation connectors can be used when criteria are multiplied or are distributed on a defined pattern, for example, when installing grid flush-mount lighting. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid granular objects with a diameter of less than 1 mm in accordance with protection type IP40.

Thanks to the color coding and mechanical A coding of the WINSTA MINI pluggable installation connector, you can clearly distinguish between different circuits. WINSTA MINI follows the trend towards miniaturization. WAGO’s smallest pluggable connection systems are very good for lighting applications. Advancements in LED technology have lead to smaller spaces being available for connection technology. In the snap-in versions, the locking levers are already installed at the factory. Thus the snap-in connection is child’s play – easy to establish and securely locked.

Push-in CAGE CLAMP spring pressure connection technology – pluggable installation instead of laborious screw connections

The WINSTA Pluggable Connection System is tailored to meet the very strict requirements of building installation. Because it is pluggable, it is more efficient, more reliable, and error-free. Pre-assembly reduces installation times and errors at the construction site. Now you can also cut installation expenses without compromising safety and quality: The WINSTA MINI pluggable installation connectors with marking reduce the need for servicing and prevent unnecessary downtime.

  • pluggable installation connectors with protection against mismating
  • easy tool-free operation, a wide range of coding options
  • with A coding for a great number of uses
  • custom-engineered solutions
  • quick replacement of defective units during ongoing operation
