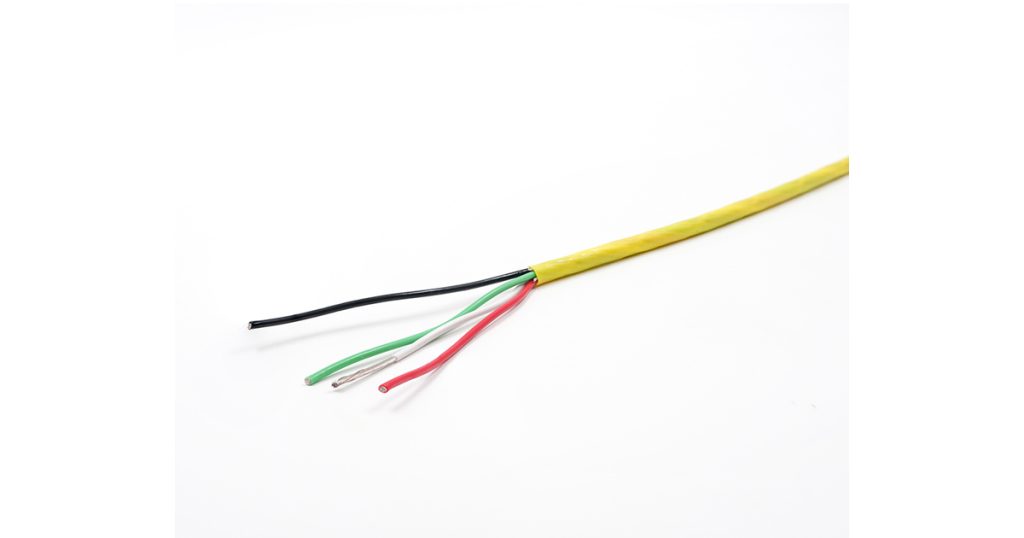

Amphenol TPC Wire & Cable: Chem-Gard 250 Multi-Conductor Cable

February 4, 2025

Chem-Gard 250 Multi-Conductor is the latest cable from TPC WIre & Cable designed for control and instrumentation applications. This high-performance cable is engineered to withstand extreme temperatures and harsh chemical environments, setting a new industry benchmark.

The Chem-Gard 250 Multi-Conductor Cable is approximately 40% smaller in diameter than typical SOOW cables, making it an excellent choice for use in areas with restricted space and in conduit. It features a copolymer PFA jacket, providing exceptional resistance to chemicals, abrasion, and high heat. With a maximum conductor temperature of 250°C (482°F), this cable is ideal for demanding applications where reliability and durability are paramount.

Chem-Gard 250 Key Features and Benefits:

  • Finely Stranded Nickel-Plated Copper Conductors: Enhances flex-life and reduces conductor fatigue and breakage while offering high heat resistance.
  • Specially Compounded PFA Insulation: Delivers high dielectric, tensile, and mechanical properties, with superior resistance to oils, coolants, acids, and most chemicals.
  • High-Temperature Fillers: Prevents contaminants from wicking into the cable and allows conductors to move freely within the jacket, improving flex-life in dynamic applications.
  • Specially Compounded PFA Jacket: Provides superior resistance to oils, acids, solvents, and chemicals, and excellent defense against cutting and abrasion.

Ratings and Approvals:

  • UL Recognized
  • CSA Certified
  • RoHS Compliant
  • 600V
  • Max Conductor Temperature: 250°C
  • Cold Temperature Rating: -40°C
  • AWM Style 21589
  • CSA AWM Class I/II Group A/B
  • FT1 Flame Rating
  • VW-1 Flame Rating

Performance:

  • Bend Radius (Static): 12x Cable O.D.
  • Bend Radius (Dynamic): 15x Cable O.D.

Applications:

  • Flexing
  • Abrasion
  • Impact
  • Tension
  • High Temperature
  • Cold Temperature
  • Chemical Exposure
