icotek: Expansion of the KEL-DPZ-KX/KL Cable Entry Plate Series
February 26, 2024
The KEL-DPZ-KX/KL cable entry plate, designed for Rittal KX and KL enclosures, has been expanded with five new configurations.

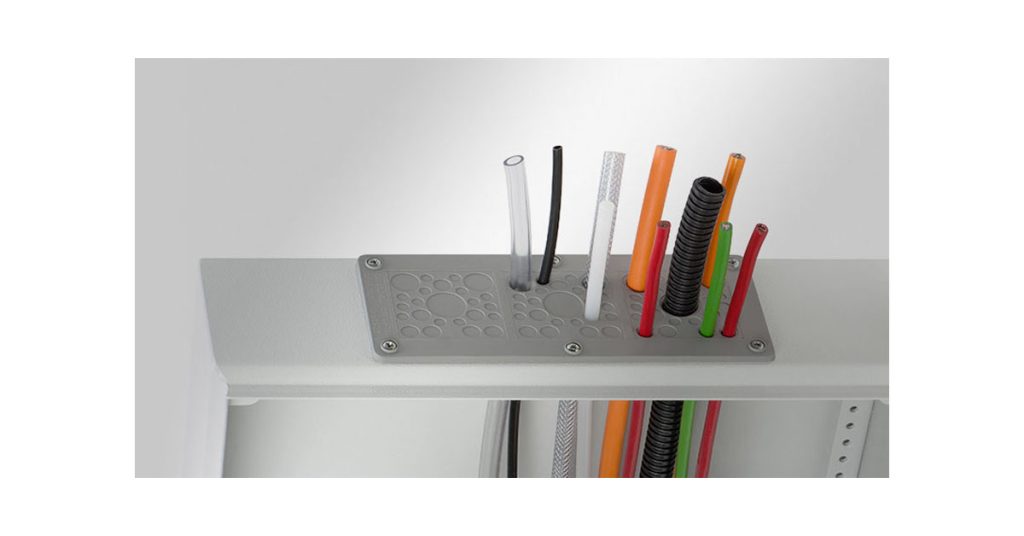

By mounting the KEL-DPZ-KX/KL cable entry plate on the Rittal KX or KL enclosure (instead of the Rittal flange plate), a cable entry for a large number of cables with different diameters can be created in a very short time.
KEL-DPZ cable entry plates are designed to route and seal a large number cables without connectors, hoses or fibre optics (from 1.5 mm to 22 mm in diameter) in limited space.
The KEL-DPZ products are a cost and time saving alternative to traditional cable glands.
The assembly of the KEL-DPZ with unterminated cables or pneumatic hoses can be done quick and easy. Simply make a small hole in the thin membrane, push the cables through. The KEL-DPZ provides strain relief and protection up to IP66/UL type 12.
The KEL-DPZ matches exactly the cut-out dimensions of 6-, 10-, 16- and 24-pin standard industrial connectors. The size KEL-DPZ-B fits on cut-outs 46 × 46 mm. The very compact size KEL-DPZ-E is designed for routing cables in very small space. Through a cut-out of only 18 × 112 mm, up to 21 cables can be easily routed and sealed.
The KEL-DPZ-KX/KL (IP65) size was designed for routing up to 72 cables through the pre-cut standard cut-out. The self-tapping screws required for assembly are included in the scope of delivery.
ST-B Plugs can be used for sealing pierced membranes if cables have been removed.
