HELUKABEL: HELUTHERM 145 UL/CSA 600V

January 17, 2023

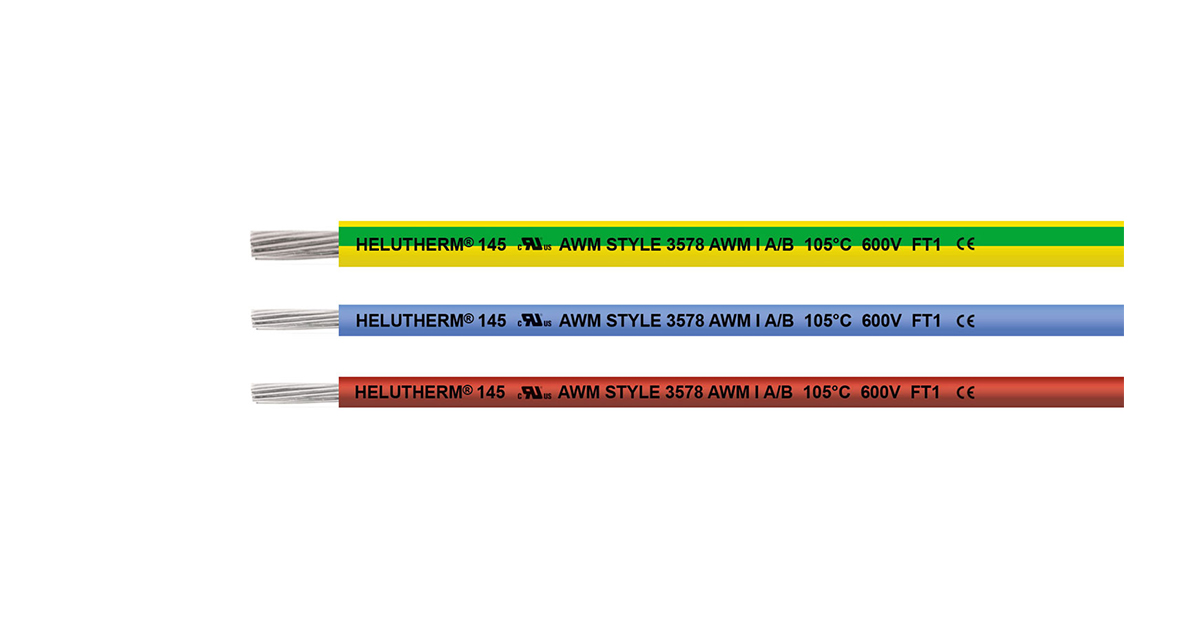

Introducing the HELUTHERM 145 UL/CSA 600V wire cable, with temperature resistant single core for the internal wiring of lighting fixtures, heaters, electrical machinery, switching systems and distributors in industrial equipment as well as plant and machinery construction; suitable for laying in tubes, on and under plaster as well as closed installation ducts. Not suitable for direct laying in cable ladders and cable trays.

HELUTHERM 145 Tests:

  • Halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
  • Corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2
  • Flame-retardant acc. to CSA FT1
  • Bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24
  • Smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034- 1+2 / IEC 61034-1+2
  • Oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404, IRM 902 4h at +70°C
  • Certifications and approvals: 0.5 – 50 mm²: DNV GL

HELUTHERM 145 Properties:

  • Resistant to: UV radiation, ozone, weathering effects
  • Abrasion-resistant, notch-resistant
  • Halogen-free The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

More Information
