Amphenol TPC Wire & Cable: Addition to the Hy-Trex MP500 Power Cable Line-up

June 4, 2024

Amphenol TPC Wire & Cable is proud to announce an addition to it’s line of Hy-Trex MP500 Power Cables.

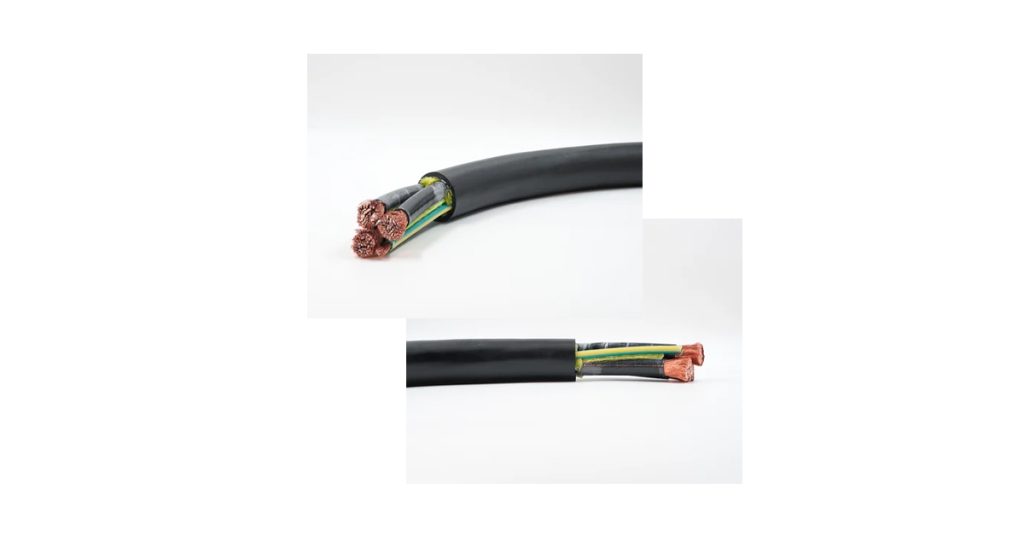

The Hy-Trex MP500 power cable, part number 61373-2, is ideal for supplying power to OEM equipment and machinery. Commonly used to power robotic welding cells and other high amperage load automated equipment. These power cables are specifically designed to deliver reliable performance and long-lasting durability, making them an excellent choice for any industrial application requiring high-quality power cables. In stock and ready for immediate shipping. 

Senior Product Manager Dave Sedivy states: “This addition to our Hy-Trex power cables expands our existing power cable offering to larger conductor sizes to provide greater overall power while keeping the customer on budget. “It is ideal for use on equipment requiring higher amperage loads, while maintaining the flexibility expected from our Hy-Trex power cables.”

HY-TREX MP500 POWER CABLE KEY FEATURES AND SPECIFICATIONS:

  • Highly Flexible Design : The Hy-Trex power cable is specifically designed to last during continuous bending, twisting and twisting. It is ideal for supplying power to OEM equipment and machines.
  • Conductor: Finely stranded copper conductors improve flex life and reduce conductor fatigue and breakage.
  • Insulation : Specially compounded TPE insulation resists the effects of lubricating oils, coolants, cutting oils, acids and most chemicals.
  • Coating : Specially composed black TPE coating offers superior defense against tears, abrasion, impacts, oil, ozone and most chemicals.
  • Shielding Options : Available in shielded and unshielded configurations.
  • Applications : Suitable for bending, abrasion, low temperature and impact environments.

Hy-Trex MP500 Classifications/Features:

  • UL Listed
  • UL Recognized
  • cUL Listing
  • 373 MCM with #2 AWG ground conductor
  • 600V
  • 1000V WTTC
  • Type TC-ER, Type WTTC, Type-MTW
  • Style AWM 20886
  • CIC-TC according to CSA 22.2 No. 239
  • FT4 flame rating
  • Maximum conductor temperature: 90°C dry / 75°C wet
  • Suitable for Class I, II, III, Division 2
  • Bending Radius (Static): 6x Cable Outer Diameter, Bending Radius (Dynamic): 8x Cable Outer Diameter
  • Oil resistant
  • Cold bending: -25°C
  • Cold impact: -25°C
