Phoenix Contact: Connectors for Energy Storage Systems

June 1, 2020

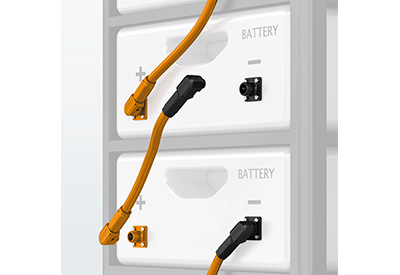

Phoenix Contact presents new connectors for energy storage systems. The device and cable connectors are protected against polarity reversal and can be rotated 360°.

This makes them particularly suitable for flexible cable outlets in modular battery racks.

The touch-proof circular connectors feature color coding and mechanical coding to ensure a high degree of safety when connecting the battery terminals. The new product family is designed for conductor cross sections from 16 to 25 mm², and transmits nominal currents up to 120 A and nominal voltages up to 1500 V (DC).
