Mouser: Amphenol RF BNC to SMA Cable Assemblies

March 30, 2020

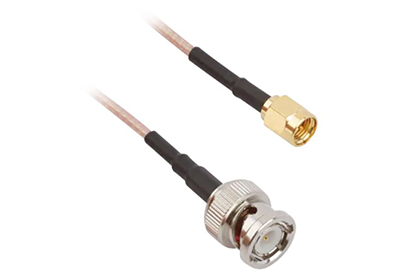

Amphenol RF BNC to SMA Cable Assemblies features straight or right-angle BNC plugs to straight or right-angle SMA connectors on RG-58, RG-142, and RG-316 cable. The BNC connectors feature a bayonet coupling style, which allows for quick connect and disconnect while still offering high reliability. The assemblies can be used for both 50Ω and 75Ω impedance applications. The 50Ω assemblies will function up to 4GHz and the 75Ω assemblies will function up to 3GHz. Amphenol RF BNC to SMA Cable Assemblies are ideal for broadcast applications.



Key Features-Benefits Bar.jpg

  •  –   Straight or right-angle
  •  –   50Ω and 75Ω impedance
  •  –   RG-58, RG-142, and RG-316 cables type
  •  –   6″ to 144″ cables length

Important Links Bar.jpg

https://www.mouser.com/new/wire-cable/amphenol-rf-bnc-sma-cable-assemblies/n-5gglZ1zqtvn
