binder: M16-X – Male/female cable connector and female panel mount connector 415 Series

March 17, 2020

binder has announced an M16 X – coded connector capable of handling the data speeds demanded by today’s sensor-based automated production facilities. Data transmission figures are an impressive 10Gbits/s.

With the benefits of rugged design and excellent environmental resistance, M16 connectors have become widely used for sensors for both indoor and outdoor use where there is a need for a higher pin count than is offered by M8 and M12 connectors.

The binder 415 Series includes a male/female cable connector along with a panel mounted female connector which is designed to be front fastened. When mated, they are rated to IP67.

415 Series connectors have 8 gold (Au) plated contacts rated to 0.5A at 50V AC, 60V DC and can accommodate cables ranging from 5.5 to 9mm diameter.

Key Features-Benefits Bar.jpg

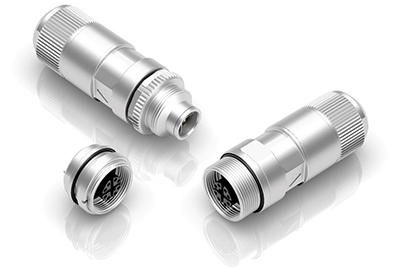

415 Series – Male/female cable connector and female panel mount connector

  •  –   Einführung der neuen Serie
  •  –   Data transmission up to 10 GBit/s
  •  –   Male/female cable connector
  •  –   Cable outlet 5,5 – 9 mm
  •  –   Female panel mount connector, front fastened
  •  –   Female panel mount connector with dip solder contacts
  •  –   IP67 in mated condition
  •  –   Available from now on



Important Links Bar.jpg

https://www.binder-connector.com/en/news-press/news/detail/binders-latest-m16-x-coded-connectors-handle-up-to-10gbitss
