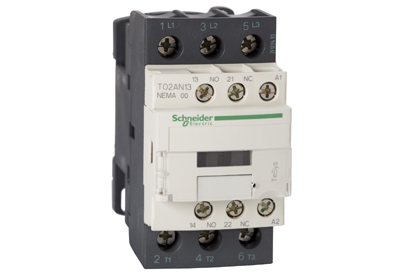

Schneider Electric T02AN13G7 TESys N Contactors

Main
product or component type
Contactor

range of product
TeSys N

contactor application
Non-reversing

NEMA size
00

motor power hp
2 hp 460 V AC
2 hp 575 V AC
1.5 hp 200 V AC
1.5 hp 230 V AC

NEMA degree of protection
Not rated (open device)

control circuit
Common control circuit

[Uc] control circuit voltage
120 V AC

auxiliary contact composition
1 NO + 1 NC

poles description
3P

Phase
3 phases

Line Rated Current
9 A

product certifications
CE
CSA
UL listed

System Voltage
600 V AC

electrical connection
Screw clamp terminals
