Hammond Manufacturing: Type 4X Wiring Trough


October 19, 2021

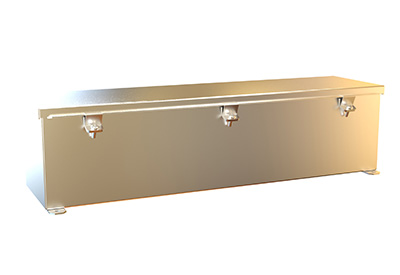

Introducing the new Type 4X wiring trough from Hammond Manufacturing. Made from formed 14 gauge 304 stainless steel with smooth, continuously welded seams, the trough has a butt-hinged cover which is secured with easily operated screw clamps, oil resistant gaskets which are permenently secured, and 12 gauge external mounting feet that are welded to the back. Each trough and cover have a smooth-brushed finish.

Application

  •    –   Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection.


Standards

  •    –   UL / cUL Type 12, 4, 4X
  •    –   CSA Type 1
  •    –   Complies with
    •       –   NEMA Type 12, 4, 4X
    •       –   IEC 60529, IP66


https://www.hammfg.com/electrical/products/wireway/1486ss

Check Availability



Post Views: 791
