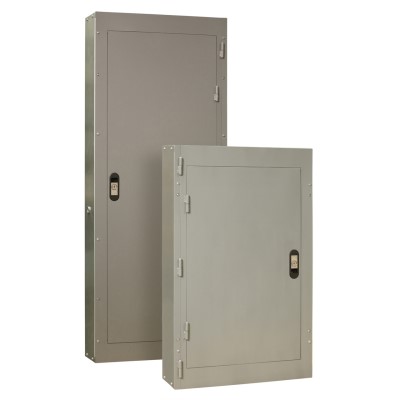

Littelfuse LFCP Series Fused Coordination Panel

Littelfuse Coordination Panel Thumbnail

Littelfuse Coordination PanelSeptember 7, 2021

The Littelfuse LFCP series fused coordination panel is a compact fusible and easily configurable pre-engineered panel for circuits requiring selective coordination. Rated up to 600 V ac, this coordination panel saves time and money, plus increases safety, by minimizing system downtime. The advanced LFCP series is available with 200 kA SCCR rating using Class CC and J fuses and can be used on branch and feeder/ service entrance circuits.

-Meets NEC selective coordination code requirements

-Main lug only or main fused disconnect options available

-Class CC fuse holders have built-in open-circuit indication

-35 A–200 A Class J fuses are available with open-circuit indication

-Uses standard disconnects and Class CC and J fuses

-Feed through lugs available

-Neutral options are configurable for service entrance

-Ground options can be field isolated

-Copper bus standard

-Surface mount

-Available in standard 20” width enclosure for easy installation

-Door-in-door construction standard

-NEMA 1 indoor enclosure

To learn more, visit littelfuse.com/products/fusible-switches-and-panels/pre-engineered-solutions
