Ganged SMP Edge Mount Multi-Port Connectors Provide High-density Solution


July 6, 2021

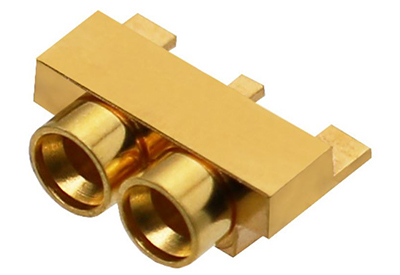

Cinch Connectivity Solutions, a Bel group company, recently announced the expansion of the Ganged SMP Edge Mount Connectors in 2 port and 4 port configurations operating to 40 GHz.

These high-density solutions with 2- and 4- port configurations incorporating 40 GHz SMP interfaces provide superior RF connectivity.  Ganged SMP connectors allow ease of design and mating of multiple connectors with a single connection in a snap-on interface.  Edge Mount are designed to allow dense packaging of multiple connectors to support connecting two PCBs orthogonally in tight spaces.  Available in full detent, limited detent, and smooth bore configurations.

Cinch’s high-quality standards of ruggedness and durability offer excellent performance with VSWR of 1.15 Max to 26.5 GHz and 1.50 Max to 40 GHz.


https://belfuse.com/news-detail/ganged-smp-edge-mount-multi-port-connectors-provide-high-density-solution

Check Availability – 2 Port – 1 – 2 – 3  –  4 Port – 1 – 2 – 3



Post Views: 438
