Eaton: B-Line Series Mounting Panels


May 25, 2021

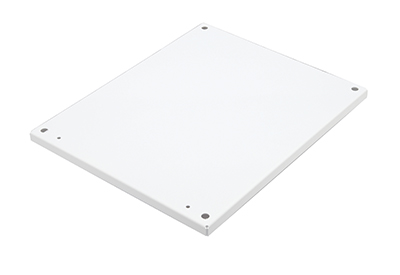

Eaton offers a wide variety of mounting panels for B-Line series electrical enclosures. These include but are not limited to the following options:

  •    –   Solid mounting panels
  •    –   Perforated mounting panels
  •    –   Flanged mounting panels
  •    –   Wood back panels
  •    –   Swing gate panels
  •    –   Kits and accessories

Download the B-Line series environmental enclosures accessories section for additional information.






https://www.eaton.com/us/en-us/catalog/enclosures/b-line-series-mounting-panels.html
