Hammond Manufacturing: High Frequency Reactors 197 Series


May 25, 2021

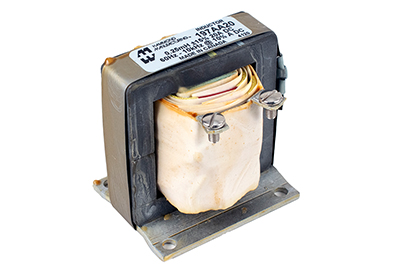

Introducing the 197 Series High Frequency Reactors from Hammond Manufacturing, perfect for high frequency filtering applications with high permiability cores ideal for applications under 50 kHz, as well as high self-resonant frequency values and an operating frequency of 60Hz – 10kHz.

Some models feature universal channel mount packaging with flexible insulated leads (6″ min.). Some models feature rugged construction with aluminum base and stainless steel band along with open-style terminals for maximum versatility.






https://www.hammfg.com/electronics/transformers/choke/197

Check Availability
