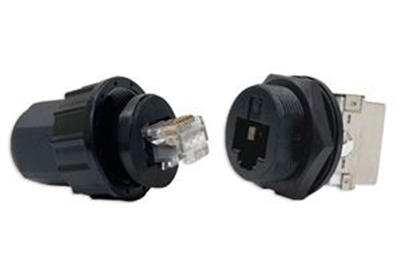

Sager: Switchcraft End Series Sealed RJ45 Connectors


April 19, 2021

Offering reliable, harsh environment performance in a smaller package, Switchcraft’s new END series incorporates an RJ45 connected into a sealed housing. The RJ45 series offers data performance up to CAT6 while still ensuring the connectors are easy to terminate. Panel mount receptacles are sealed up to IP67 when mated or using the optional cap and are compatible with END series sealed plugs or any standard RJ45 connector. Shielding is available with the optional shielded plug and the ENDP6SPC die-cast receptacles.






Features:

  •    –   IP67 Rated Water Resistance
  •    –   Available CAT 6 Performance
  •    –   Multiple configurations available, including feedthru and shielded options

Specifications:

  •    –   Lifecycles: 500 cycles min.
  •    –   Seal Rating: IP67
  •    –   Cable Dia Range: 4.6-6.0mm
  •    –   Contact Material: Gold plated copper
  •    –   Mounting: 13/16-28 UNS thread (20.7mm recommend cut-out)


https://www.sager.com/manufacturers/switchcraft/switchcraft-end-series-sealed-rj45-connectors/default.aspx

Check Availability
