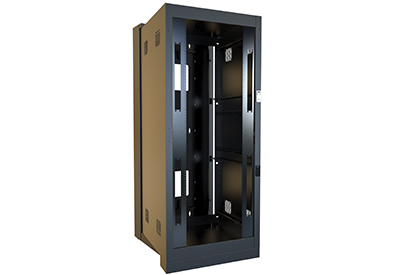

Hammond Manufacturing: Swing-Out Sectional Floor/ Wall Mount Rack Cabinet


March 22, 2021

Hammond Manufacturing’s Swing-Out Sectional Floor/ Wall Mount Rack Cabinet HWF Series with 500lb capacity is available in 3 heights. Each one features optional doors that install in minutes and are available in vented, tinted window and solid. The top of the rear section includes a 3U cutout for optional rack mount fans or accessory mounting, and the main body can be installed to swing from left-to-right or right-to-left. Includes locking twist-latches.

Each enclosure includes one pair of adjustable depth threaded 10-32 EIA compliant mounting rack rails: each are thirty inch wide mounting rails which include cutouts for optional 1U 19″ accessories, such as cable management or power bars, and 10-32 tapped rails are easy to remove on-site and replace with square hole rails (sold separately) if needed. Each enclosure includes a starter pack of SCREW1032-50 screws and CLPKIT1032-25 clip nuts and screws.


Specifications

  •    –   Heavy duty rear and base are constructed in 14-gauge welded steel.
  •    –   Optional locking doors are constructed in 16-gauge steel.
  •    –   Swing-out cabinet constructed in 16-gauge welded steel and features a spring-hinge pin for easy installation and removal.
  •    –   2.50” and 2.00” conduit knockouts are located on the side.
  •    –   4.00″, 2.00” conduit knockouts and BNC 0.625” knockouts are located on the top.
  •    –   Numerous cable management mounting points included.
  •    –   Heavy duty keyhole for wall mounting and leveling feet.
  •    –   Large openings in rear for cable access designed for mounting over electrical receptacles.
  •    –   Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit sold separately.
  •    –   Load rated for up to 500 lbs (226 kg).
  •    –   Rugged textured black or white powder paint.
  •    –   Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements, when door installed.
  •    –   TAA compliant for GSA Schedule purchases.
  •    –   RoHS Compliant.
  •    –   Manufactured in North America.


https://www.hammfg.com/dci/products/wall-mount/hwf?referer=55
