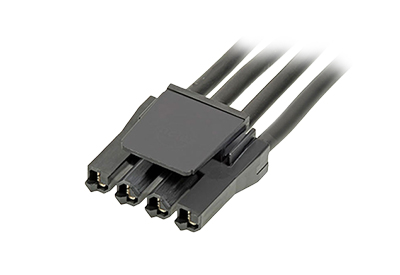

Molex OTS Super Sabre Cable Assemblies


February 23, 2021

Molex Off-the-Shelf (OTS) Super Sabre Cable Assemblies deliver a 34.0A current rating and offer a variety of cable lengths (150mm to 600mm) and power connectors with proven technology for long-term performance. Molex OTS Super Sabre Cable Assemblies offer up to 600V voltage and operate over a -40°C to +105°C temperature range. The series is ideal for use in a variety of automotive, medical, consumer, and telecom applications.

APPLICATIONS

  •    –   Automotive
  •       –   Commercial vehicles
  •    –   Consumer
  •       –   Air conditioners
  •       –   Ovens/ranges
  •       –   Refrigerators
  •       –   Vacuum cleaners
  •       –   Washers and dryers
  •    –   Medical
  •       –   Diagnostic equipment
  •       –   Medical imaging
  •       –   Patient monitors
  •    –   Telecommunications/Networking
  •       –   Base stations
  •       –   Fan / blower racks
  •       –   Power supplies and distribution
  •       –   Servers
  •       –   Switches


SPECIFICATIONS

  •    –   2, 3, and 4 circuits
  •    –   150mm, 300mm, and 600mm lengths
  •    –   -40°C to +105°C operating temperature range
  •    –   25 cycles maximum durability
  •    –   600VAC/DC maximum voltage
  •    –   Up to 34.0A maximum current
  •    –   2000VAC dielectric withstanding voltage (unmate connectors for 1 minute between adjacent terminals and between terminals to ground)
  •    –   500MΩ minimum insulation resistance


FEATURES

  •    –   Current rating of 34.0A per blade and 600V meets requirements for high-current and high-voltage applications in a low-profile design
  •    –   Silver-plated, high-conductivity alloy terminals
  •       –   High-performance connections that eliminate fretting corrosion concerns
  •       –   More cost-effective solution than gold-plated terminals, optimized for 12AWG to 10AWG wires
  •    –   Positive latch and Terminal Position Assurance features on the receptacle
  •       –   Prevents terminal backout with mating plug or header in high-vibration applications
  •    –   Wire-to-wire and wire-to-board configurations
  •       –   Offers design flexibility with space savings
  •       –   Compatible with lead-free wave soldering and reflow soldering processes
  •    –   Operating temperature up to +105°C, USCAR-2, level 3 allows for high-operating-temperature uses, including automotive and commercial vehicle applications
  •    –   Flat-blade terminal design with four independent points of electrical contact
  •       –   Offers redundant, secondary current paths for long-term performance and reliability
  •    –   UL1977 and UL60950 Finger Test certified blade meets safety requirements for many consumer applications


https://www.mouser.ca/new/wire-cable/molex-ots-super-sabre-cable-assemblies/n-5gglZ2nqyrd
