January 19, 2021

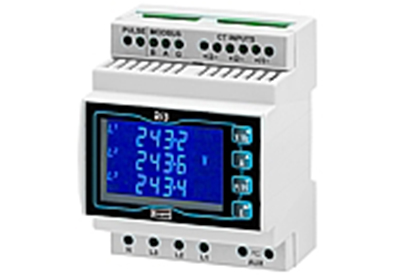

The Integra Ri3 dms is an accurate and cost effective solution for measurement and display of all major electrical and power quality parameters with easy programming and user friendly navigation in DIN 43880 enclosure.

The product features a DIN-rail enclosure, backlit LCD display and user programmable CT ratios, all accessible via an intuitive user interface.

Integra Ri3 dms measures 17 electrical parameters including total harmonic distortion (THD) measurement up to the 31st harmonic.

Programmable Functions

Integra Ci3 dms is programmable to suit single-phase, three-phase three-wire and three-phase four-wire system configurations. Programmable CT ratios enable to display any current range.

Display

The parameters can be viewed on a backlit LCD display. The 15 screens are accessible via four buttons on the front panel allowing to scroll between various screens making the navigation very user-friendly, intuitive and above all – simple.

Output

Modbus RTU RS485 protocol and pulsed output are available as standard


Features

  • - DIN-rail enclosure DIN 43880
  • - Backlit LCD screen
  • - Programmable CT ratio
  • - True rms measurement
  • - User programmable system configuration
  • - Pulsed output and Modbus as standard


Benefits

  • - Cost effective
  • - Simple navigation
  • - Crompton renowned quality
  • - UK manufactured

Standards

  • - IEC 61326
  • - IEC 61010-1
  • - IEC 62053-21



https://www.megacon.com/default.aspx?pageId=1315
