binder Rectangular Flange Connectors Offer Latching, Multi-Position A-Coding

December 30, 2020

Expanding its Series 763, binder has developed two new M12-A-coded connectors. The product range expansion for the rectangular flange code-positioning connectors includes another stranded-wire version with a new 26 mm rectangular housing and a version with solder contacts. The new 26 mm rectangular housing for the stranded-wire version uses the same drilling template as the M16 rectangular flange connector. In this way, it is possible to switch to M12 without changing the existing housing.

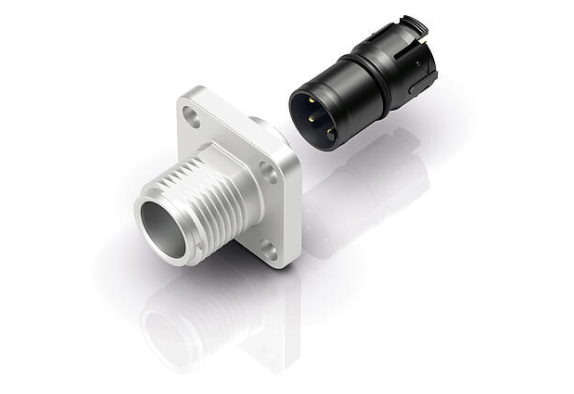

For simple and reliable installation, binder is relying on a two-part approach consisting of the housing and the contact holder. With this, the coding nose of the contact holder can be positioned in increments of 45°.

With a user-friendly installation and sealing concept, the new versions comply with  IP68, even without a defined tightening torque. Besides sealing, the rectangular flange connectors are temperature-resistant over a range of -40°C to +85°C.

The M12-A positioning rectangular flange connectors are available with 4, 5 and 8 pins in the stranded-wire version with a 20 mm or 26 mm rectangular housing. They are also available in a solder version with a 20 mm rectangular housing.



763 Series

binder M12-A-coded connectors

Check Availability
