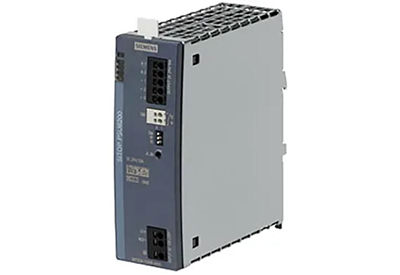

As an all-around power supply, SITOP PSU6200 offers a broad selection of power supply units for a wide range of applications and currents – with a uniform design and uniform handling of all device versions. The consistent product family offers you suitable 1-and 3-phase power supplies and add-on modules for comprehensive, all-round protection – for different current and voltage intensities. SITOP PSU8600 power supply system is used as a central DC power supply in larger plants, or machines with networked automation systems. The PSU8600 can be directly integrated into the LAN infrastructure by means of the two integrated PROFINET ports.
An extremely high level of reliability is achieved for the DC voltage supply by monitoring the individual DC branches for overload and bridging short-term power failures (brownouts). Complete transparency and fast fault localization are achieved by providing comprehensive diagnostic and maintenance information (e.g. load states of the outputs, phase/network failure, overtemperature) via PROFINET. Energy-optimized operation is supported by measuring the current power and voltage values of the individual outputs as well as the individual activation and deactivation of the DC outputs via PROFIenergy during break times.
Features:
- – Push-in terminals
- – Unique terminal labeling on the front of the unit
- – Additional minus terminal (grounding) for potential equalization/PELV according to the Machinery Directive
- – Line fed in from the front
- – Slim design
- – No lateral installation clearances required
- – High degree of efficiency of up to 96%
- – As of 10 A: active PFC (power factor correction) for low inrush currents and high power factor/reduction of reactive current component
Design:
- – SITOP PSU8600, 1-phase power supply, 24 V DC/20 A/4 x 5 A with four outputs (max. 5 A per output) and two Ethernet/PROFINET ports
- – SITOP PSU8600, 3-phase power supply, 24 V DC/20 A/4 x 5 A with four outputs (max. 5 A per output) and two Ethernet/PROFINET ports
- – SITOP PSU8600, 3-phase power supply, 24 V DC/20 A with one output and two Ethernet/PROFINET ports
- – SITOP PSU8600, 3-phase power supply, 24 V DC/40 A/4 x 10 A with four outputs (max. 10 A per output) and two Ethernet/PROFINET ports
- – SITOP PSU8600, 3-phase power supply, 24 V DC/40 A with one output and two Ethernet/PROFINET ports
Modular system, consisting of:
- – SITOP CNX8600 4 x 5 A (expansion module with 4 outputs, each 5 A)
- – SITOP CNX8600 4 x 10 A (expansion module with 4 outputs, each 10 A)
- – SITOP CNX8600 8 x 2.5 A (expansion module with 8 outputs, each 2.5 A)
- – SITOP BUF8600 100 ms/40 A (buffer module with 100 ms at 40 A)
- – SITOP BUF8600 300 ms/40 A (buffer module with 300 ms at 40 A)
- – SITOP BUF8600 4 s/40 A (buffer module with 4 s at 40 A)
- – SITOP BUF8600 10 s/40 A (buffer module with 10 s at 40 A)
- – SITOP UPS8600 (UPS module)
- – BAT8600 (battery module BAT8600 Pb for buffering in case of power failure 10 min/960 W)
- – BAT8600 (battery module BAT8600 LiFePO4 for buffering in case of power failure 14 min/960 W)
