VCC’s IP67-rated Panel Mount Indicators Designed for Harsh Environments

VCC CD Series

March 12, 2020

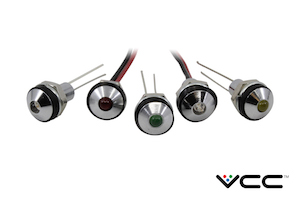

CD Series panel mount indicator

VCC has launched a new panel mount indicator rated to IP67 for demanding applications. Designed to easily fit panel thickness of up to 2.29mm, the CD Series is resistant to ideal for applications in industrial control panels, transportation dashboards, instrumentation, main power indication, aircraft/ military instrumentation and more.

The vibration and water-resistant LED indicators feature a front mount nickel-plated housing has a prominent bezel shape with a protruded LED which increases visibility in the panel. A protruded 3mm LED offers daytime visibility with viewing angles of 25° to 60°.

The CD Series panel mount indicator offers greater design flexibility via several power options including an optional resistor for 5V-28VDC and 120VC.

Available with ultra bright (daylight visibility) LEDs that achieve full brightness in microseconds. Offered in five single colors: red, green, yellow, blue, and white.



  • IP67 rating ensures moisture and dust affect performance
  • Includes a lock washer, hex nut and gasket seal for protection from vandals, shock, and vibration
  • Provides high daytime visibility via a protruded 3mm LED and prominent nickel-plated bezel
  • Viewing angles of 25° to 60° make the CD Series easy to see from a range of vantage points
  • Allows for design flexibility via power options – optional resistor for 5V-28VDC and 120VC mean more design possibilities in a single indicator
  • Long operational life of 50,000 hours
  • Available in the single colors most commonly used for indication, including red, green, yellow, blue and white
  • RoHS and REACH Compliant
