IP68 Sealed Pushbutton Switches Available with No-cap Option
December 6, 2019

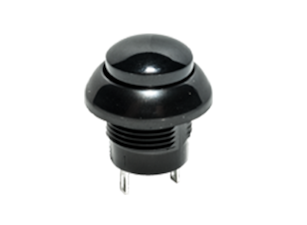

The PNP Series sealed pushbutton switch from C&K is engineered to meet the needs of applications for harsh environments – such as control grip, off-road panels, industrial instruments, lifts, and conveyor controls – where the switches are used repeatedly and are exposed to dust, water or other typically damaging elements. Alongside the already comprehensive range of standard options, C&K now offers a no-cap option for increased versatility to meet the demands of customers.
Constructed in a black PBT/PC thermoplastic housing, the PNP Series switches include an internal silicone rubber seal and are rated to IP68, making them ideal for harsh environments and for power wash-down applications, or anywhere the switch may be exposed to dust, water or other damaging elements. PNP Series switches are tested for vibration (10 to 500 Hz) and shock (up to 50 g) and are rated for up to 1,000,000 cycles.
The snap action provides positive tactile feedback while the lower operating force of just 3 N reduces operator fatigue. Designed for front panel mounting, the switches have a threaded body and are available with a dome bezel as a standard option. A range of actuator styles and colors are offered, and the PNP-series (including PNP8) switches may also be specified with the new no-cap option, allowing greater flexibility for designers.
Capable of handling resistive currents up to 5 A with silver contacts, a gold over silver contact option is available for low-current applications, down to 10 mA. Circuit options include momentary action SPST NC, SPST NO and SPDT – all with double break.
- IP68 sealed to endure harsh environments
- 1,000,000 life cycle
- Snap-action provide positive tactile feedback
- Multiple housing styles
- Insulation Resistance: 1 gigohms @ 500 VDC
- Dielectric Strength: 1000 V AC min.
- Operating Temperature: -40°C to 85°C
- Contact Resistance: 50 milliohms max initial (without wire leads)
More information on the C&K PNP Series sealed pushbutton switch
