AB-CO PURGE AP-01Z-02 Z-Type System Designed Specifically for Small Electrical Enclosures

Sept. 18, 2019

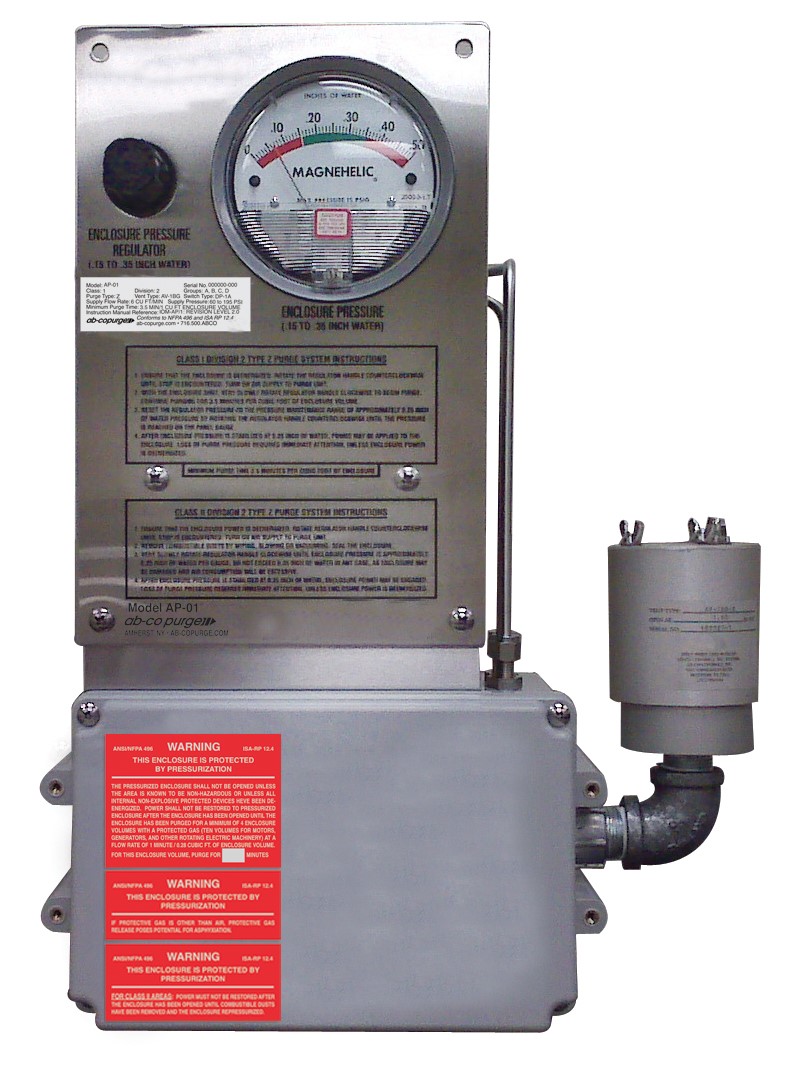

The AB-CO PURGE Model AP-01Z-02 Purge and Pressurization System is a Z-Type system designed specifically for small electrical enclosures with volumes up to 2 cubic feet (0.056 cubic meters).

As a Z-Type purge and pressurization system, the Model AP-01Z-02 reduces the classification within the electrical enclosure used in a Class I, Division 2 (Groups A,B,C,D) and Class II, Division 2 (Groups F&G) hazardous environment from Division 2 to unclassified.







It supplies the enclosure with the proper amount of inert gas or clean instrument air which removes flammable gases and prevents the accumulation of ignitable mixtures within the respective protective enclosure. In addition, this AB –CO Purge system is a very economical way to place unclassified equipment into a Division 2 hazardous location.

For additional information on AB-CO PURGE products, including full specifications,
visit our website at: ab-copurge.com
