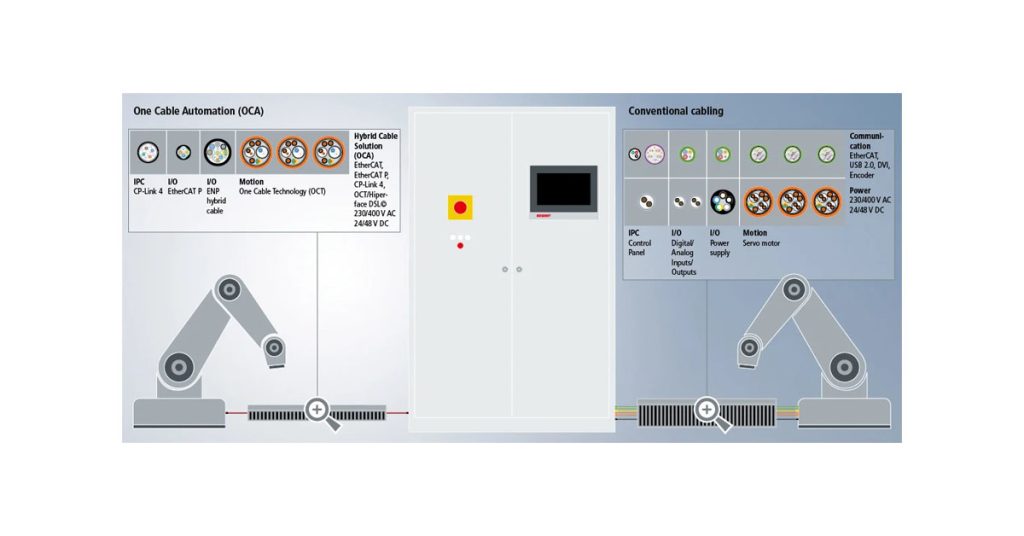

A Comparison: One Cable Automation and Conventional Wiring

March 27, 2024

Although both approaches have their advantages and disadvantages, industrial automation is showing a preference for One Cable Automation due to the savings and simplicity that it brings for the design, construction, and operation of machinery and systems.

One Cable Automation (OCA):

  • Simplified wiring: The OCA system from Beckhoff uses a single cable for both power supply and data transmission. This reduces the number of connections and cables required.
  • Space saving: Bundling the power supply and data into one cable saves space in the machine’s cable channels and cable trays.
  • Lower costs: Having less cables generally results in lower costs for materials and installation.
  • Less susceptibility to faults: As the number of physical connections is reduced, the number of potential sources of faults also decreases.
  • Easier servicing and maintenance: Fault diagnosis and component replacement are often easier if there is only one cable per device.
  • Future-proof: Our OCA solution is designed to support more advanced and faster communication protocols.

Conventional wiring:

  • Separate systems: Classic approaches use separate cables for energy transfer and data communication.
  • Flexible component selection: As the system is not dependent on how a few specific components interact, different components can be combined more easily.
  • Redundancy: In critical systems, implementing separate systems for power and data can provide increased reliability.
  • Broad compatibility: This multi-cable solution can work with a wide range of existing products and standards that do not have any specific requirements.
  • Special applications: Certain sectors may have specific requirements that cannot be covered by standardized OCA solutions.

https://www.beckhoff.com/en-us/company/news/a-comparison-conventional-wiring-and-one-cable-automation.html
