icotek: EMC-KEL-DS – Split EMC Cable Entry Frames for Shielding Cables With Connectors / IP55

October 20, 2020

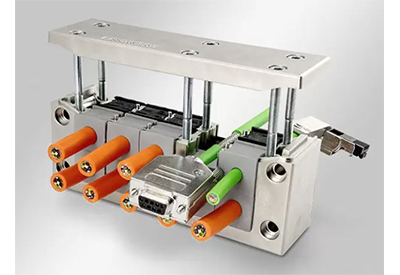

The EMC cable entry frame EMC-KEL-DS has been metallised (galvanise coated) to create a conductive surface.

The front cable grommet (KT) is used for strain relief and cable sealing on the cable jacket. The cable shield is contacted over 360° via the rear conductive grommet (EMC-KT).

The EMC-KEL-DS frames match exactly the cut-out dimensions for 24-pin standard industrial connectors. Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed.

The contact between the EMC-KEL-DS and the conductive housing wall is realised via the included conductive flat gasket.

Advantages & benefits

•    –   Both conducted and field-bound disturbances can be reliably diverted
•    –   Strain relief and sealing are separated from the EMC contact
•    –   Scratch-resistant surface
•    –   Contacting the cable shield over 360°
•    –   EMC grommets made entirely from conductive elastomer
•    –   Very good dissipation values
•    –   Very good shielding effect with regard to EMC tightness
