Hammond Manufacturing: C4XSC Series Type 4X Stainless Steel Junction Box

October 2, 2023

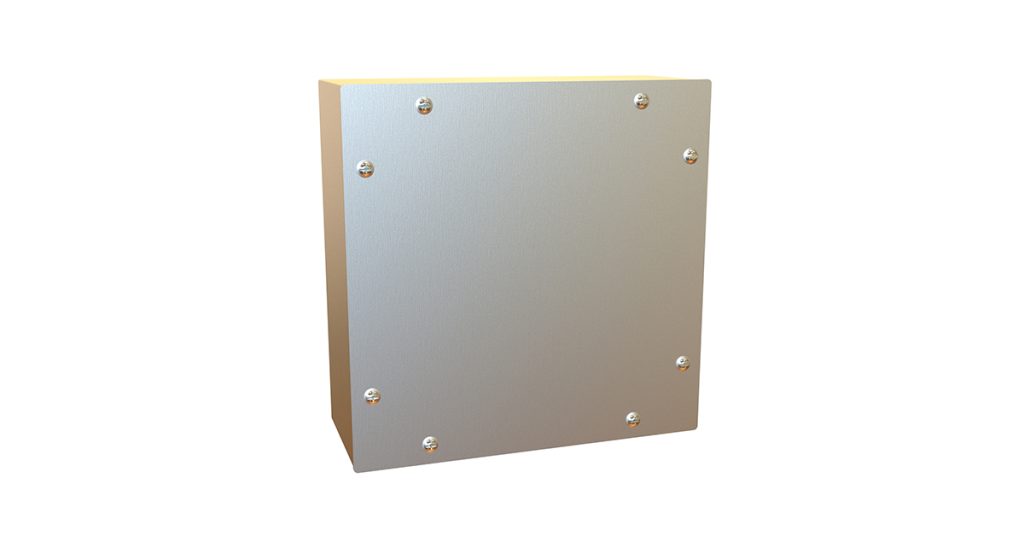

Introducing the C4XSC Series Type 4X stainless steel junction box, designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to hose down/precipitation or corrosion.

C4XSC Series Standards

  • UL 508A Listed; Type 3, 4X, 12
  • cULus Listed per CSA C22.2 No 94; Type 3, 4X, 12
  • Complies with
    • NEMA Type 3, 4X and 12
    • IEC 60529, IP66

Construction

  • 14 gauge 304 stainless steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
  • 14 gauge 304 stainless steel cover up to 12”x12”; 10 gauge cover when 16”x16” or larger
  • Smooth, continuously welded seams without knockouts, cutouts, or holes
  • Captivated stainless steel cover screws thread into sealed wells
  • Seamless poured-in place gasket
  • No provision for inner mounting panel
  • Mounting Foot Kit sold separately – use C4XMTGFOOT

Finish

  • Enclosure and cover are unpainted, with a grained #4 finish.

More Information
