Phoenix Contact: Installation Power Distribution (IPD) System

October 14, 2020

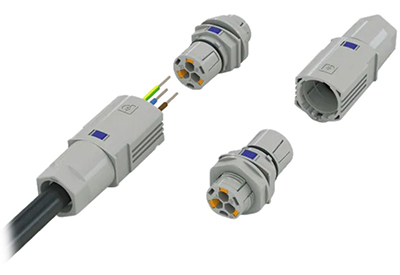

Phoenix Contact Installation Power Distribution (IPD) System efficiently and reliably connects push-in terminations through a bulkhead or device enclosure without special tooling. By using panel feed-throughs, devices no longer need to be opened to connect cables. The IPD system combines the bulkhead-mounted base and exterior hood under a single part number. The system requires only an M20 or M25 hole in the device for mounting and seals to IP66/IP68 to protect against high-pressure spray and submersion. IPD is capable of handling up to 20A/600V and offers 2+PE or 4+PE positions with a 20AWG to 14AWG wire range. Phoenix Contact Installation Power Distribution (IPD) System is ideal for the lighting industry, including applications that are primarily non-disconnect.



Key Features-Benefits Bar.jpg

FEATURES

  •    –   Utilizes push-in technology for a simple and secure connection
  •    –   Quick and easy assembly without special tools
  •    –   By using panel feed-throughs, devices no longer need to be opened to connect cables
  •    –   Seals to IP66/IP68 to protect against high-pressure spray and submersion
  •    –   UL Listed under file E468743, category PVVA, tested against UL2237



APPLICATIONS

  •    –   Lighting
  •    –   Non-disconnect (primarily)



SPECIFICATIONS

  •    –   Capable of handling up to 20A/600V
  •    –   2+PE or 4+PE positions
  •    –   20AWG to 14AWG wire range
  •    –   -40°C to +100°C ambient temperature range



Important Links Bar.jpg

https://www.mouser.com/new/phoenix-contact/phoenix-contact-ipd-system/

Check Availability
