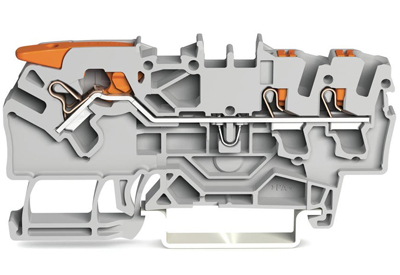

Wago 3-Conductor Through Terminal Block

October 14, 2019

Wago’s 3-conductor through terminal block is equipped with lever and push-buttons, test ports, side and centre marking and is flexible for use on 35×15 and 35×7.5 DIN-rails.

Key Features-Benefits Bar.jpg









Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A
Rated current (2) 30 A
Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3



Rated voltage CSA (Use Group B) 600 V
Rated current CSA (Use Group B) 20 A
Rated voltage CSA (Use Group C) 600 V
Rated current CSA (Use Group C) 20 A



Connection technology Push-in CAGE CLAMP®
Actuation type Push-in
Lever
Push-button
Actuation type 2 Push-in
Push-button
Operating tool
Connectable conductor materials Copper
Strip length 10 … 12 mm / 0.39 … 0.47 inch



Important Links Bar.jpg

https://www.wago.com/global/rail-mount-terminal-blocks/3-conductor-through-terminal-block/p/2102-5301
