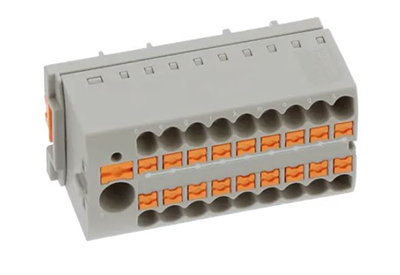

PTFIX distribution blocks with Push-in connection technology come ready to connect with different numbers of positions, mounting options, and colors. The new PTFIX distribution blocks are now available with a 4 mm2 Push-in connection and with various terminal points and mounting types. They are connection-ready and can be configured individually. The 2.5 mm2 terminal block range has been expanded by adding versions with just two terminal points. They can be used straight away and expanded as needed. PTFIX thus helps to ensure flexible and cost-effective load and control current distribution.
Ready-to-connect blocks enable rapid mounting without manual bridging and time savings of up to 80%. Distribution block versions for transverse mounting on the DIN rail enable high wiring density and space savings of up to 50%. Distribution and power blocks with 6, 12 and 18 terminal points are available for intuitive and reliable installation in eleven colors. The distribution blocks can be arranged and expanded, checked and marked individually with two-position plug-in bridges from the CLIPLINE complete system.
Features:
- – 35 mm2 feed-in via the proven, maintenance-free screw connection combined with tool-free wiring of the points via the quick and easy Push-in connection
- – Current 0/ voltage 17.5 A/500 V
- – Solid / AWG 0.14 – 1.5 mm2 / 26 – 16 12
- – Stranded / AWG 0.14 – 1.5 mm2 / 26 – 16 18
- – Stranded, with ferrule with plastic sleeve 0.14 – 1.5 mm2
- – Stranded, with ferrule without plastic sleeve 0.14 – 1.5 mm2 12
- – Can be plugged in directly: solid / with ferrule 0.34 – 1.5 mm2 / 0.34 – 1.5 mm2 18
- – Stripping length 8 – 10 mm
- – Ready-to-use blocks for fast assembly without manual bridging, offering time savings of up to 80 %
- – Flexible setup in your application, thanks to various mounting options: DIN rail mounting, direct mounting or adhesive mounting
- – The distribution blocks can be arranged and expanded, checked, and marked individually with two-pos. plug-in bridges from the CLIPLINE complete system
- – Time-saving pre-treated and solid conductor connection, thanks to tool-free Push-in direct connection technology
- – Space savings of up to 50 % on the DIN rail thanks to transverse mounting
- – Color-coded assignment of conductors and terminal points for intuitive and safe installation with eleven colors
- – Alignment without any loss of pitch and flexible potential extension using standard plug-in bridges
- – Testing facilities for all common test probes
- – Voltage up to 600 V in accordance with UL
- – Available in 11 colors
- – Number of terminal points: 2, 6, 12, and 18
